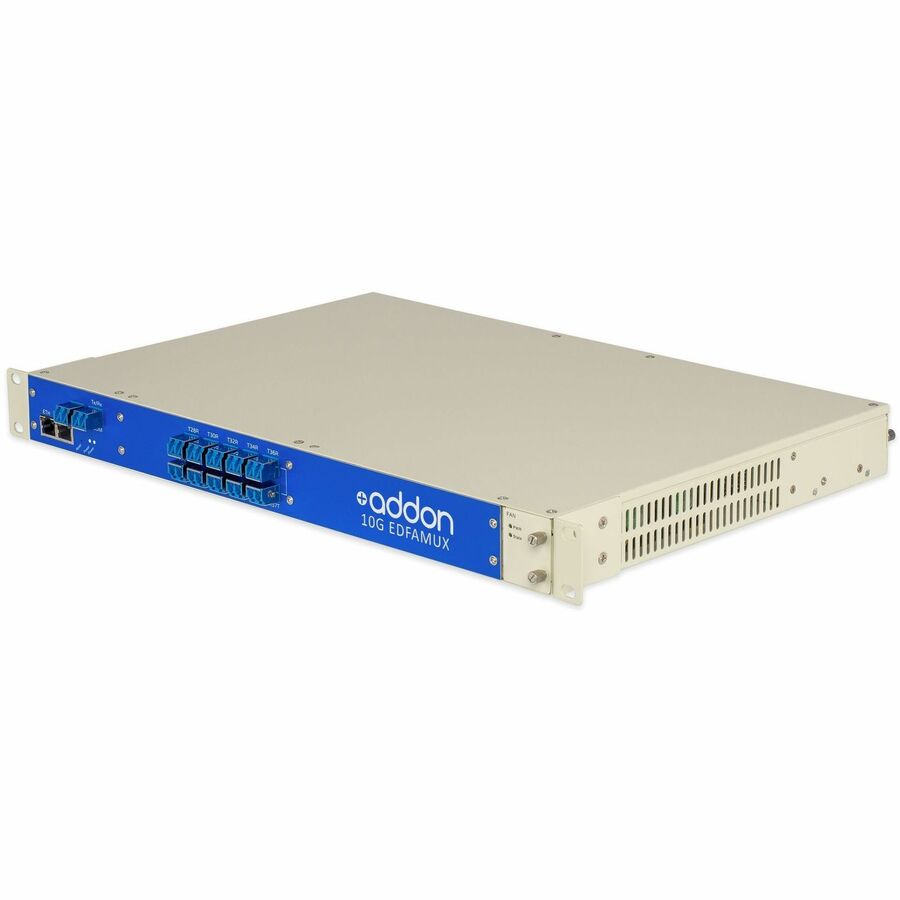

AddOn 10Ch Active MUX with built-in EDFAs and 60km fixed Dispersion Compensator, 10x10G to reach max of 140km, Channels 28-37 C-Band 100Ghz and 1% Monitor port, 1RU 19" casing (Link Engineering Req'd)
Manufacturer: AddOn
Mfr. Part: ADD-EDFAMUX-10X10G-28-140
10 Data Channels - Optical Fiber - 10 Gigabit Ethernet
About This Product
Overview
10 channel active MUX with built-in EDFA and dispersion compensator, 10x 10G to reach a max of 140Km, Net Power Budget 26dB (calculation based on 100% population of ports), Channels 28-37 C-Band 100Ghz with 1% monitor port, Dual AC 100/240V, build in LAN to access internal webserver for monitoring and configuration, 1RU 19" enclosure
- Supports 8, 10 or 16 communication lines of 10G from 140km up to 200km
- 8 Channel, 10 Channel and 16 Channel options
- Mix of 1/10G optics and/or Fiber Channel possible
- Web and Console configuration
- Web, SNMP and Syslog monitoring
- Monitor Port
- Auto Gain Control
- Default 2 x AC (100-240V), DC optional
- 19" 1U Rack Mount Form Factor
- Operating Temperature: -5 ~ 60 o C
- UPC/LC Adapters with auto dust shutters
Quick Specifications
- Product Type
- Data Multiplexer
- Number of Data Channels
- 10
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- 10 Gigabit Ethernet
- Maximum Distance Supported
- 140 km
- Input Voltage
- 120 V AC 230 V AC
- Form Factor
- Rack-mountable
- Rack Height
- 1U
