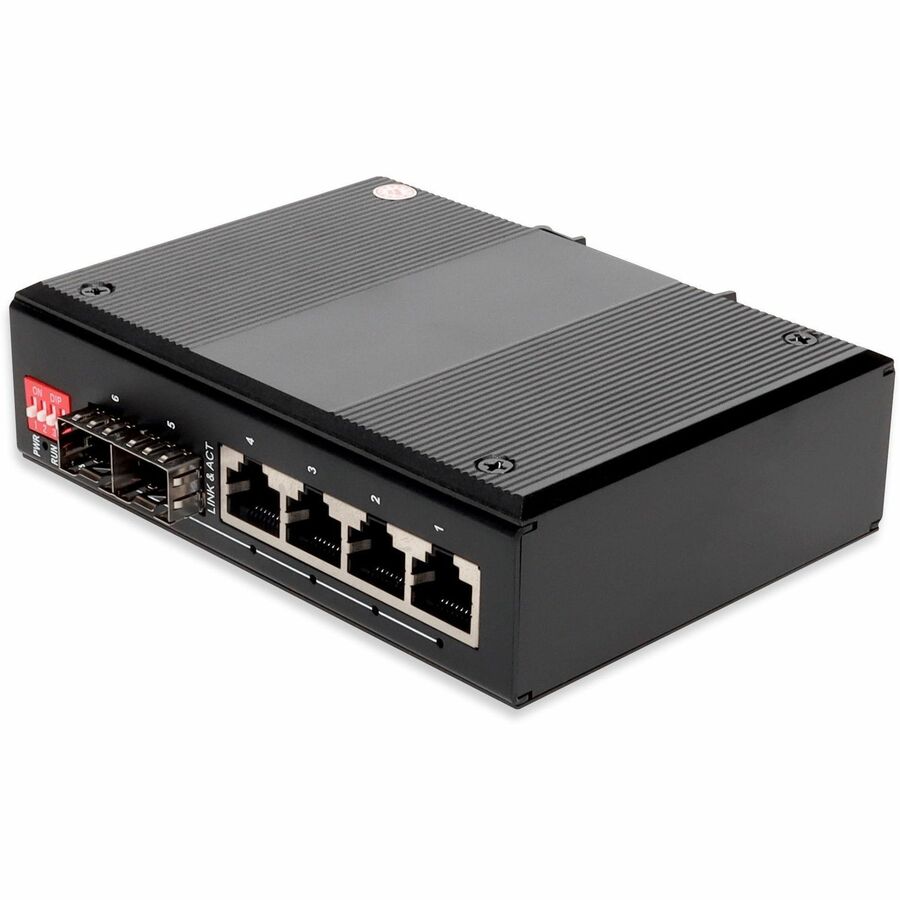

AddOn Industrial Managed 10/100/1000Base-TX(RJ-45) x4 to 2 Open SFP Port Media Converter

Manufacturer: AddOn
Mfr. Part: ADD-IMGMC-4RJ2SFP

4 x Network (RJ-45) - Multi-mode, Single-mode - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 1 Gbit/s - 0.10 km - 2 x Expansion Slots - SFP - 2 x SFP Slots - AC - Rail-mountable, Wall Mountable

AddOn Industrial Managed 10/100/1000Base-TX(RJ-45) x4 to 2 Open SFP Port Media Converter

About This Product

Overview

This is a six port media converter that converts and supports four 10/100/1000Base-TX(RJ-45) to two 1000Base-X via 2 open SFP port connectors. The open SFP ports allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from four 10/100/1000Base-TX(RJ-45) to two 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. All the four 10/100/1000Mbps UTP RJ-45 ports support full duplex 10/100/1000Mbps connectivity (half duplex only supported in 10/100Mbps mode). Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our certification test program, we can guarantee your product will work right the first time.

  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Attach multiple devices together or expand the number of devices connected to your existing network by using 4 transceiver/media converter
  • With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
  • The Rail-mountable provides convenient installation

Quick Specifications

Packaged Quantity
1
Product Type
Transceiver/Media Converter
Total Number of Ports
4
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
4
Media Type Supported
Twisted Pair Optical Fiber
Fiber Mode Supported
Multi-mode Single-mode
Maximum Data Transfer Rate
1 Gbit/s
