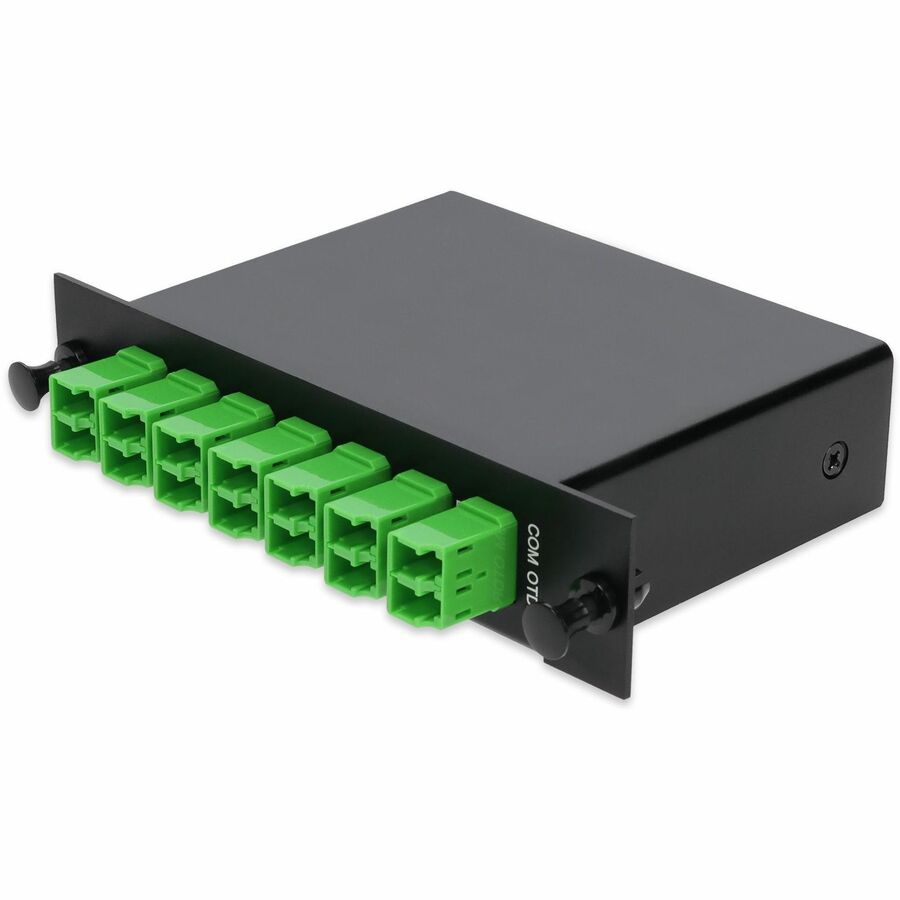

AddOn 8+3 Channel LGX DWDM Mux/Demux C56-C63 with OTDR, Test Tx/Rx, Upgrade, and Express Ports, LC/APC Connectors

This 8-Channel DWDM Optical Passive Mux/Demux is engineered to maximize the capacity of existing fiber optic networks while minimizing the need for new fiber deployment. Operating with 100GHz channel spacing and supporting ITU channels C56-C63 (1625-1670nm range), this module enables the multiplexing or demultiplexing of four discrete wavelengths over a single-mode fiber. The unit includes OTDR(1625nm-1670nm ),Test TX/RX, Upgrade Port (UPG) and an Express Port (EXP) to ensure seamless scalability and future expansion. The UPG supports additional wavelengths within the 1525-1570nm range (excluding active channels), while the EXP accommodates O-band and L-band wavelengths (1260-1520nm and 1580-1620nm), providing a cost-effective path for network growth. Equipped with LC/APC connectors and built in an industry-standard LGX form factor, this DWDM Mux/Demux delivers reliable performance and easy integration into existing fiber management systems.
