Mellanox MMS4X00-NM Compatible TAA 800GBase-DR8 PAM4 OSFP Transceiver (SMF, 1310nm, 500m, 2xMPO, DOM, CMIS 5.0)
For Data Networking, Optical Network - 2 x MPO-12/APC 800GBase-DR8 Network - Optical Fiber - 1310 nm Wavelength - Single-mode - 800 Gigabit Ethernet - 800GBase-DR8 - 850 Gbit/s - 0.50 km Maximum Distance - Hot-pluggable - 1 - TAA Compliant
About This Product
Overview

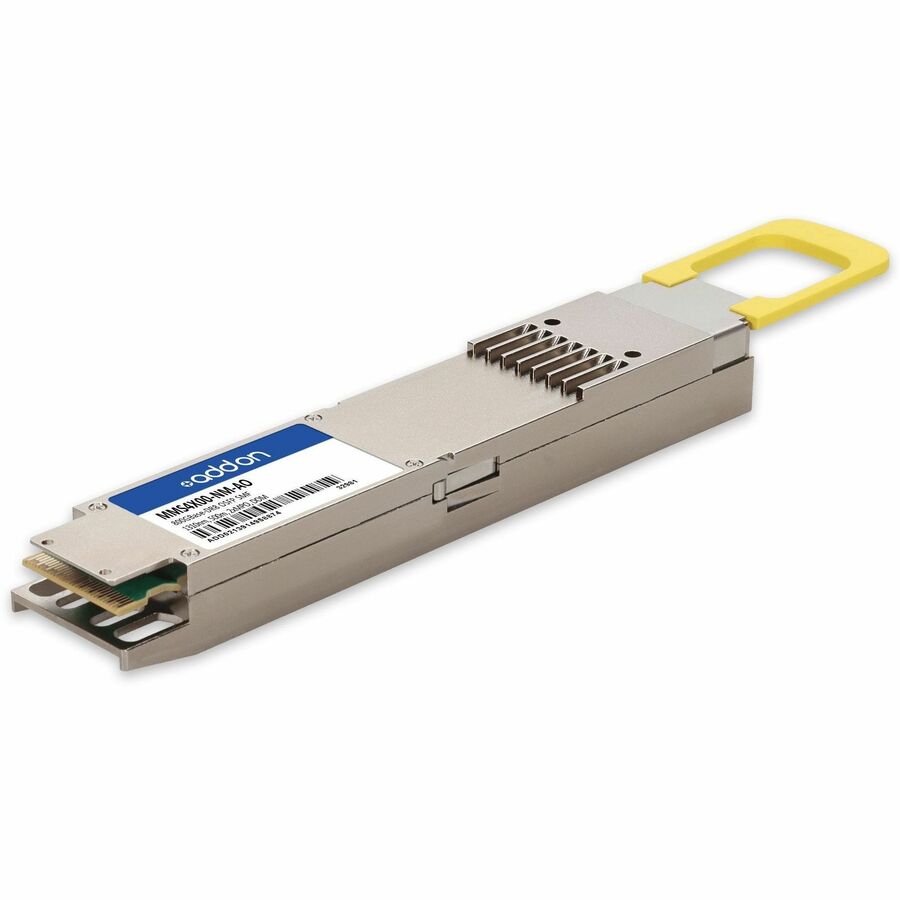

This Mellanox MMS4X00-NM compatible OSFP transceiver provides 800GBase-DR8 throughput up to 500m over single-mode fiber (SMF) PAM4 using a wavelength of 1310nm via a 2xMPO connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Mellanox. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- OSFP MSA Compliant
- Supports 850Gbps
- 8x53.125GBd (PAM4) Electrical Interface
- Compliant with IEEE 802.3cu-2021: 8x100GBASE-DR optical interface
- Compliant with IEEE 802.3ck-2022: 8x100GAUI-1 C2M electrical interface
- Support both Ethernet and InfiniBand NDR
- EML transmitter and PIN PD receiver
- Commercial Temperature: 0 to 70 Celsius
- Class 1 Laser
- Dual MPO-12 Connector APC
- RoHS Compliant and Lead-Free
Quick Specifications
- Product Type
- OSFP
- Packaged Quantity
- 1
- Application/Usage
- Data Networking Optical Network
- Features
- Digital Optical Monitoring (DOM) Hot Swappable
- Total Number of Ports
- 2
- Connector Type
- MPO-12/APC
- Interfaces/Ports Details
- 2 x MPO-12/APC 800GBase-DR8 Network
- Media Type Supported
- Optical Fiber
