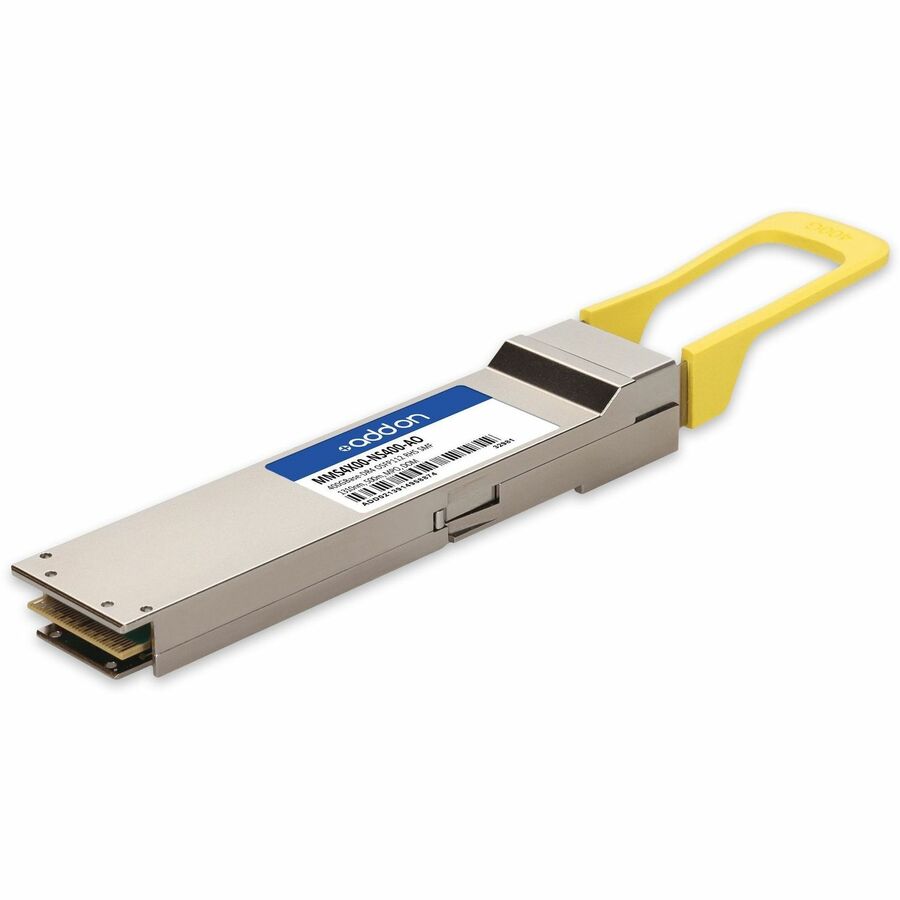

AddOn Mellanox MMS4X00-NS400 Compatible TAA 400GBase-DR4 PAM4 OSFP112 RHS Transceiver (SMF, 1310nm, 500m, MPO, DOM, CMIS 5.0)
For Data Networking, Optical Network - 1 x MPO 400GBase-DR4 Network - Optical Fiber - 1310 nm Wavelength - Single-mode - 400 Gigabit Ethernet - 400GBase-DR4 - 400 Gbit/s - 0.50 km Maximum Distance - Hot-pluggable - 1 - TAA Compliant
About This Product
Overview
This Mellanox MMS4X00-NS400 compatible OSFP112 RHS transceiver provides 400GBase-DR4 throughput up to 500m over single-mode fiber (SMF) PAM4 using a wavelength of 1310nm via an MPO connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Mellanox. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- 4x100G PAM4 Data Rates
- Hot Pluggable OSFP Form Factor
- Single 3.3V Power Supply
- I2C Management Interface Compliant to CMIS Rev5.0
- Compliant with IEEE 802.3 bs 400GBASE-DR4
- Electrical Interface Compliant with 100Gbps Per Lane Defined by IEEE 802.3ck
- Internal CDR on Both Transmitter and Receiver Channels
- PIN Receiver
- Operating Temperature: 0 to 70 Celsius
- Cooled 1310nm EML Laser
- RoHS Compliant and Lead-Free
Quick Specifications
- Product Type
- OSFP-112
- Packaged Quantity
- 1
- Application/Usage
- Data Networking Optical Network
- Features
- Digital Optical Monitoring (DOM)
- Total Number of Ports
- 1
- Connector Type
- MPO
- Interfaces/Ports Details
- 1 x MPO 400GBase-DR4 Network
- Media Type Supported
- Optical Fiber
