AddOn Arista Networks OSFP-400G-PLR4 Compatible TAA 400GBase-PLR4 OSFP-IHS Transceiver (SMF, 1310nm, 10km, MPO, DOM, CMIS 4.0)
For Data Networking, Optical Network - 1 x MPO 400GBase-PLR4 Network - Optical Fiber - 1310 nm Wavelength - Single-mode - 400 Gigabit Ethernet - 400GBase-PLR4 - 400 Gbit/s - 10 km Maximum Distance - Hot-pluggable - 1 - TAA Compliant
About This Product
Overview

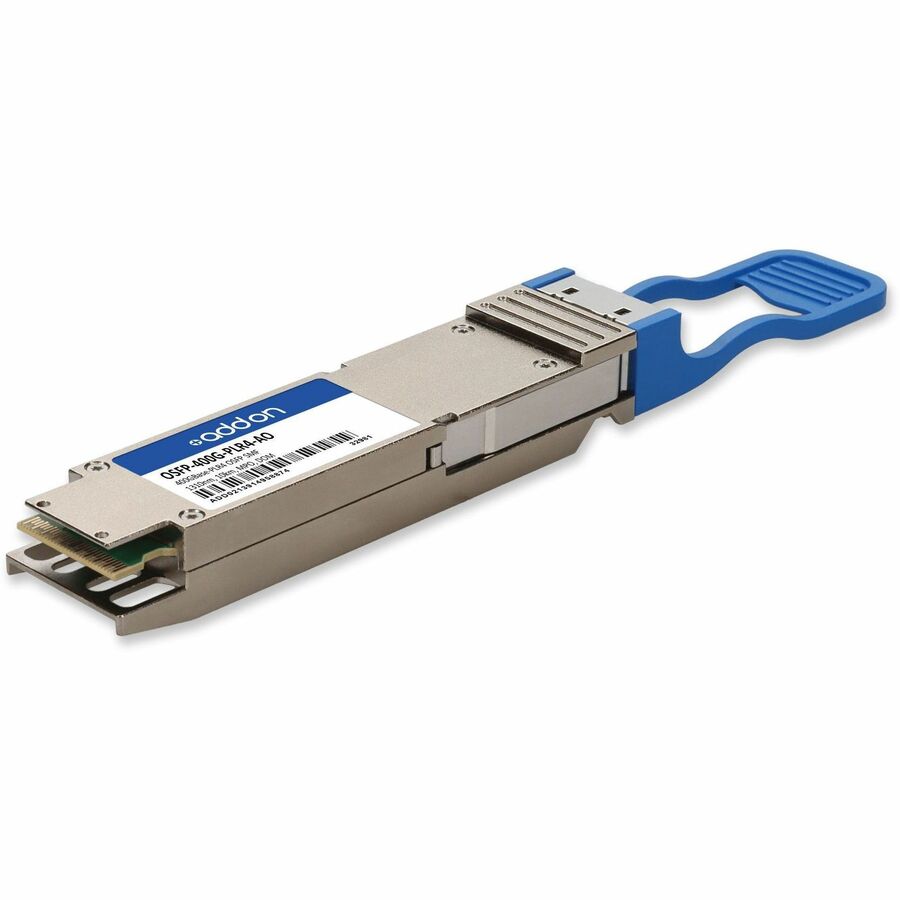

This Arista Networks OSFP-400G-PLR4 compatible OSFP-IHS Transceiver provides 400GBase-PLR4 throughput up to 10km over single-mode fiber (SMF) using a wavelength of 1310nm via an MPO connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Arista Networks. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- OSFP MSA Compliant
- Supports up to 425Gbps
- 400GAUI-8 Interface Compliance Defined by IEEE802.3bs
- Single-Mode Fiber
- MPO-12 Connector
- 8x53.125Gbps (PAM4) Electrical Interface
- CMIS 4.0 or Later
- PIN and TIA Array on Receiver Side
- Hot Pluggable
- Commercial Temperature 0 to 70 Celsius
- Metal with Lower EMI
- RoHS Compliant and Lead-Free
Quick Specifications
- Product Type
- OSFP
- Packaged Quantity
- 1
- Application/Usage
- Data Networking Optical Network
- Features
- Digital Optical Monitoring (DOM)
- Total Number of Ports
- 1
- Connector Type
- MPO
- Interfaces/Ports Details
- 1 x MPO 400GBase-PLR4 Network
- Media Type Supported
- Optical Fiber
