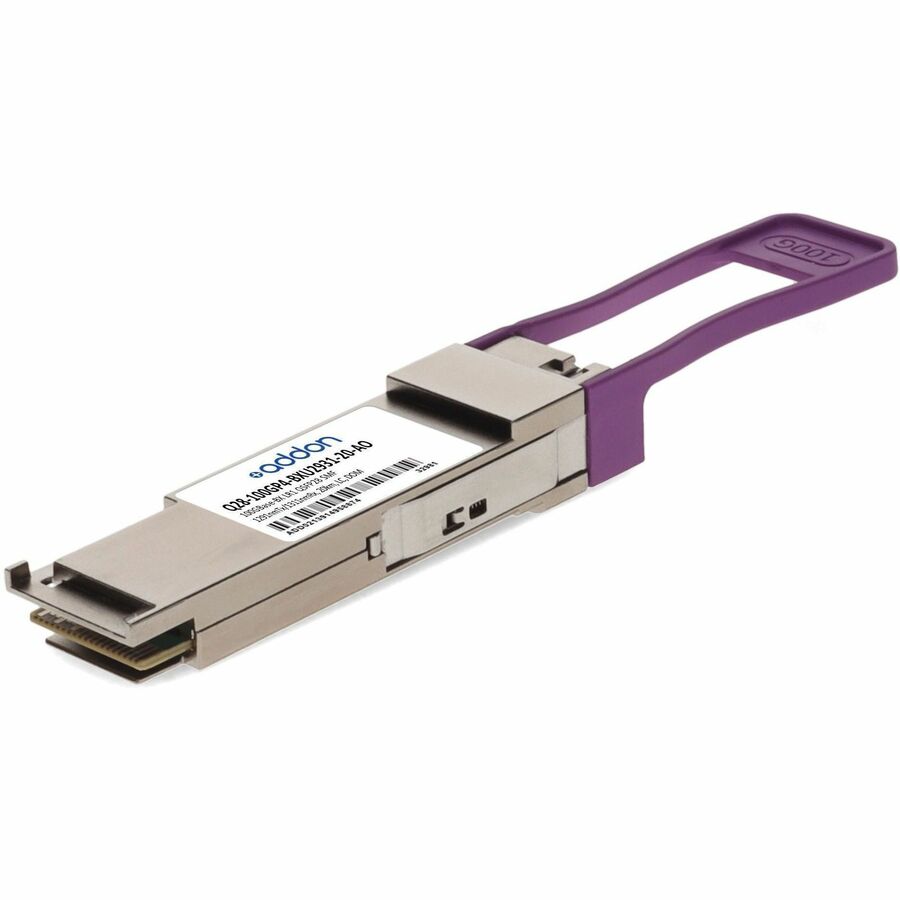

AddOn MSA and TAA 100GBase-BX LR1 PAM4 QSFP28 Transceiver Single Lambda (SMF, 1291nmTx/1311nmRx, 20km, LC, DOM)
For Data Networking, Optical Network - 1 x LC 100GBase-BX LR1 Network - Optical Fiber - 1291 nm, 1311 nm Wavelength - Single-mode (Bi-directional) - 100 Gigabit Ethernet - 100GBase-BX LR120 km Maximum Distance - 1
About This Product
Overview
This MSA compliant QSFP28 transceiver provides 100GBase-BX LR1 throughput up to 20km over single-mode fiber (SMF) PAM4 using a wavelength of 1291nmTx/1311nmRx via an LC connector. This bidirectional unit must be used with another transceiver or network appliance of complementing wavelengths. It can operate at temperatures between 0 and 70C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Compliant with QSFP28 MSA
- Supports 100Gbps
- Compliant with SFF-8636 Rev 2.10a
- 4x25G Electrical Interface Compliant with OIF CEI-28G-VSR
- Bidi LC Connectors
- Single 3.3V Power Supply
- Commercial Temperature 0 to 70 Celsius
- Single-mode Fiber
- RoHS Compliant and Lead Free
Quick Specifications
- Product Type
- QSFP28
- Packaged Quantity
- 1
- Application/Usage
- Data Networking Optical Network
- Features
- Digital Optical Monitoring (DOM)
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC 100GBase-BX LR1 Network
- Media Type Supported
- Optical Fiber
