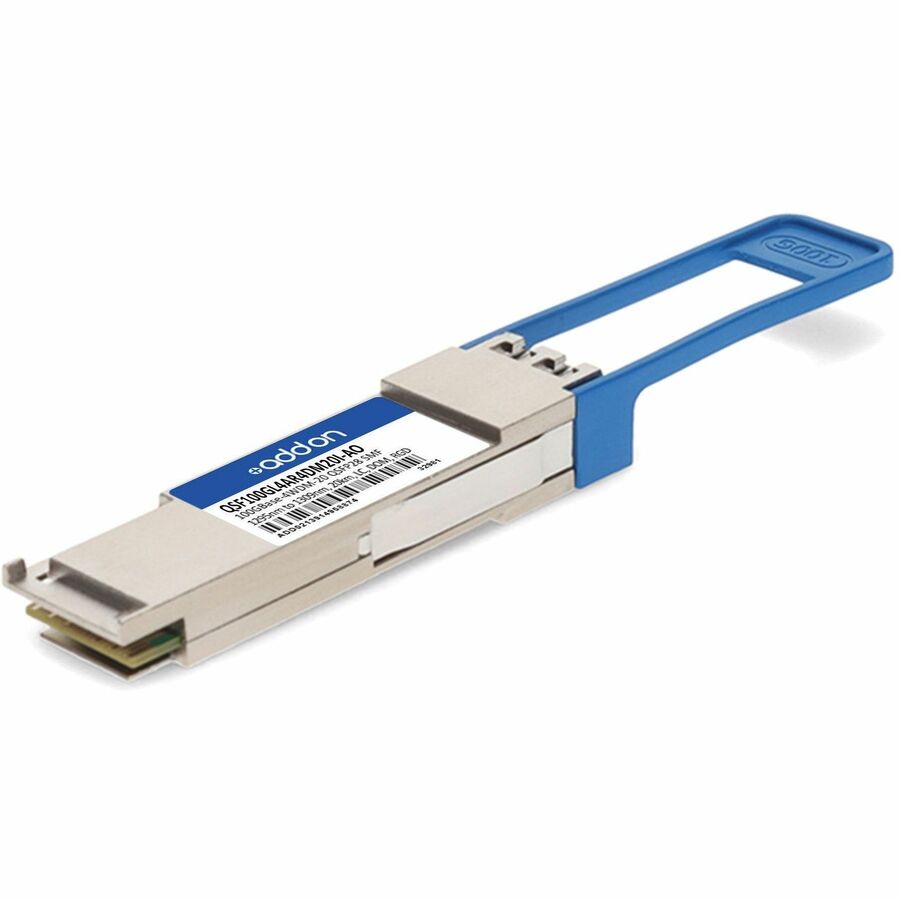

AddOn Arista Networks® QSFP-100G-LR4-AR-4WDM-20-I Compatible TAA 100GBase-4WDM-20 QSFP28 (SMF, 1295nm to 1309nm, 20km, LC, DOM, -40 to 85C)
For Data Networking, Optical Network - LC 100GBase-4WDM-20 Network - Optical Fiber - 1295 nm, 1309 nm Wavelength - Single-mode - 100 Gigabit Ethernet - 100GBase-4WDM-20 - 100 Gbit/s - 20 km Maximum Distance - Hot-swappable - 1 - TAA Compliant

About This Product
Overview
This Arista Networks QSFP-100G-LR4-AR-4WDM-20-I compatible QSFP28 transceiver provides 100GBase-4WDM-20 throughput up to 20km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm via an LC connector. It is capable of withstanding rugged environments and can operate at temperatures between -40 and 85C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Arista Networks. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 MSA compliant
- Supports 103Gbps
- Single 3.3V Power Supply and Power dissipation < 4.8W
- Up to 20km over SMF
- Operating case temperature: -40°C to 85°C
- 4*25Gbps DFB-based LAN-WDM transmitter
- PIN and TIA array on the receiver side
- 4x25G electrical interface
- Duplex LC receptacles
- I2C interface with integrated Digital Diagnostic Monitoring
Quick Specifications
- Product Type
- QSFP28
- Packaged Quantity
- 1
- Application/Usage
- Data Networking Optical Network
- Features
- Digital Optical Monitoring (DOM)
- Connector Type
- LC
- Interfaces/Ports Details
- LC 100GBase-4WDM-20 Network
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1295 nm 1309 nm
