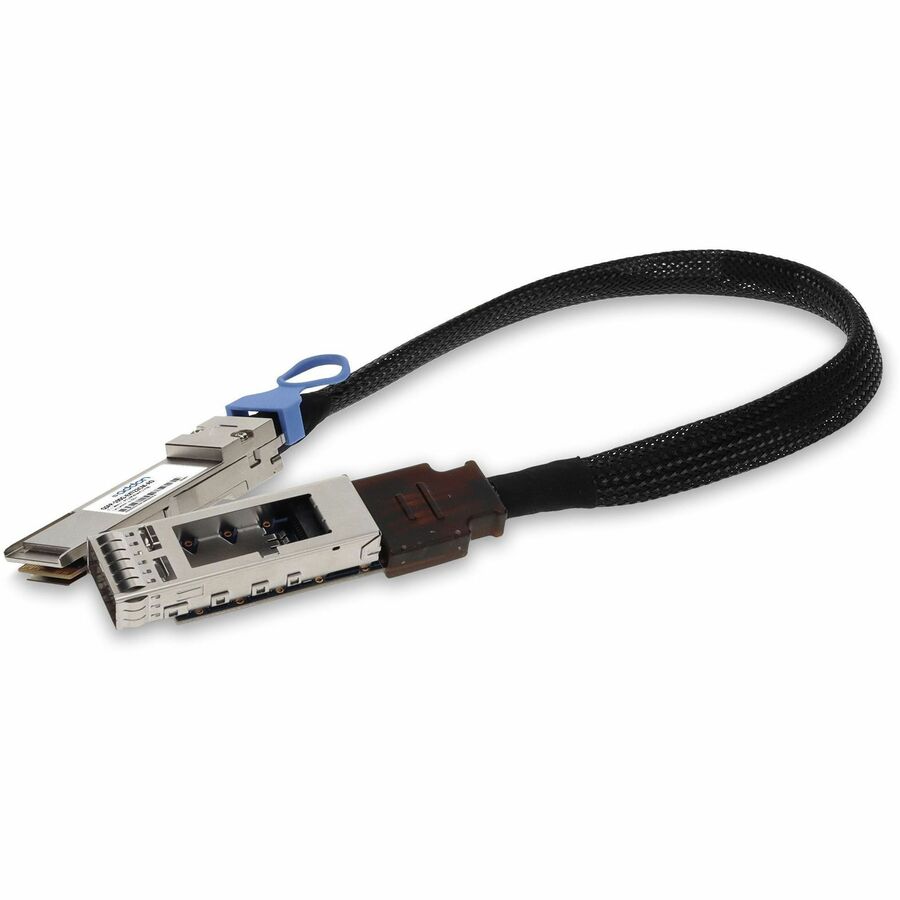

AddOn 100GBase-CU QSFP28 to QSFP28 Male to Female Direct Attach Extension Cable (Passive Twinax, 22cm, 30AWG)
Manufacturer: AddOn
Mfr. Part: QSFP-100G-EXT22CM-AO
7.20" QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Male - Second End: 1 x QSFP28 Network - Male - 100 Gbit/s - Extension Cable - 30 AWG - 1
About This Product
Overview
This is an MSA compliant 100GBase-CU QSFP28 to QSFP28 direct attach extension cable that operates over passive copper with a maximum reach of 22cm (0.7ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Low EMI radiation
- Insertion Loss < 7.0dB @12.89GHZ/channel within 50cm
- Oil resistance, dust-proof and anti-corrosion
- 100 ohm differential impedance system
- Low Near-End Crosstalk (NEXT)
- Compliant with QSFP-MSA
- Compliant with SFF-8436 and SFF-8665
- IEEE 802.3bj Compliant
- Compliant with Infiniband EDR
- Operating Temperature: 0°C to 70°C
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Network Cable
- Cable Type
- QSFP28
- Cable Characteristic
- Extension Cable
- Cable Length
- 7.20"
- Connector Type on First End
- QSFP28 Network - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x QSFP28 Network - Male
