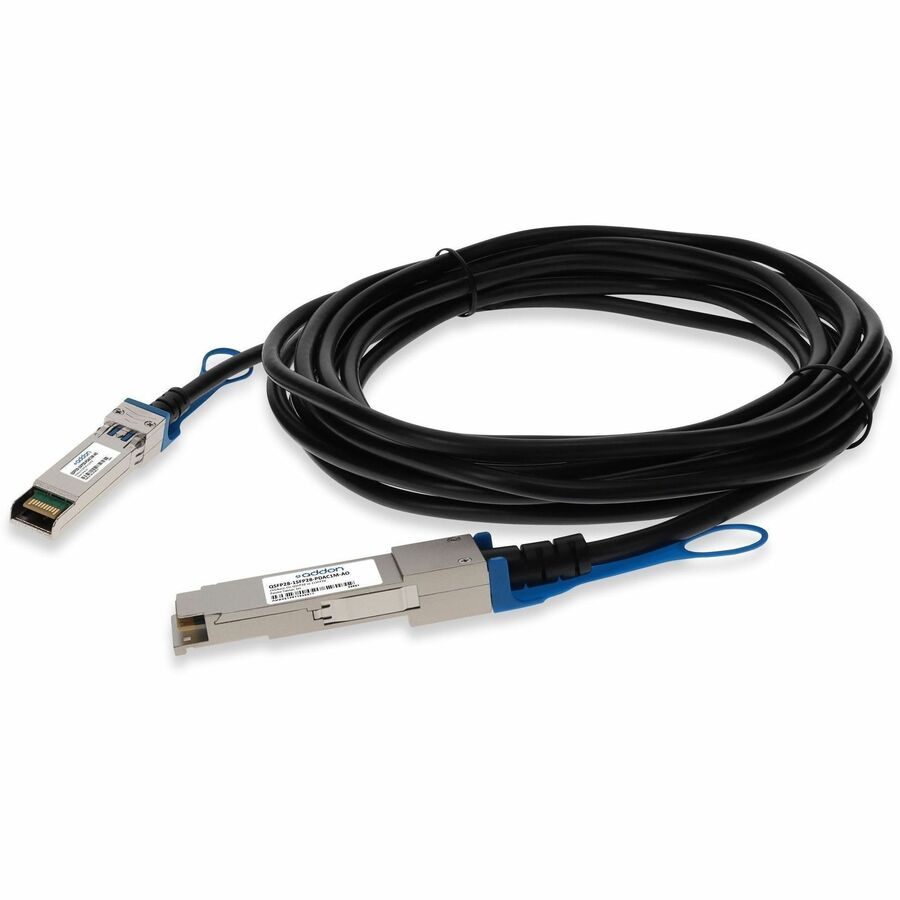

AddOn MSA and TAA Compliant 25GBase-CU QSFP28 to 1xSFP28 Direct Attach Cable (Passive Twinax, 1m)
Manufacturer: AddOn
Mfr. Part: QSFP28-1SFP28-PDAC1M-AO
3.30 ft QSFP28/SFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Male - Second End: 1 x SFP28 Network - Male - 25 Gbit/s - 30 AWG - 1
About This Product
Overview
This is an MSA compliant 25GBase-CU QSFP28 to 1xSFP28 direct attach cable that operates over passive copper with a maximum reach of 1.0m (3.3ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- QSFP28 End: Compliant with QSFP28 MSA specifications
- SFP28 End: Compliant with SFP28 MSA specifications
- 1 independent duplex channels operating at 25Gbps
- AC coupled inputs and outputs
- 100 Ohm differential impedance
- 26AWG to 30AWG Wire Gauge
- All-metal housing for superior EMI performance
- Single power supply 3.3V, low power consumption
- Operating Temperature: 0°C to 70°C
- ROHS Compliant
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Network Cable
- Cable Type
- QSFP28/SFP28
- Cable Length
- 3.30 ft
- Connector Type on First End
- QSFP28 Network - Male
- Connector Gender on First End
- Male
- Connector on First End Details
- 1 x QSFP28 Network - Male
- Connector Type on Second End
- SFP28 Network - Male
