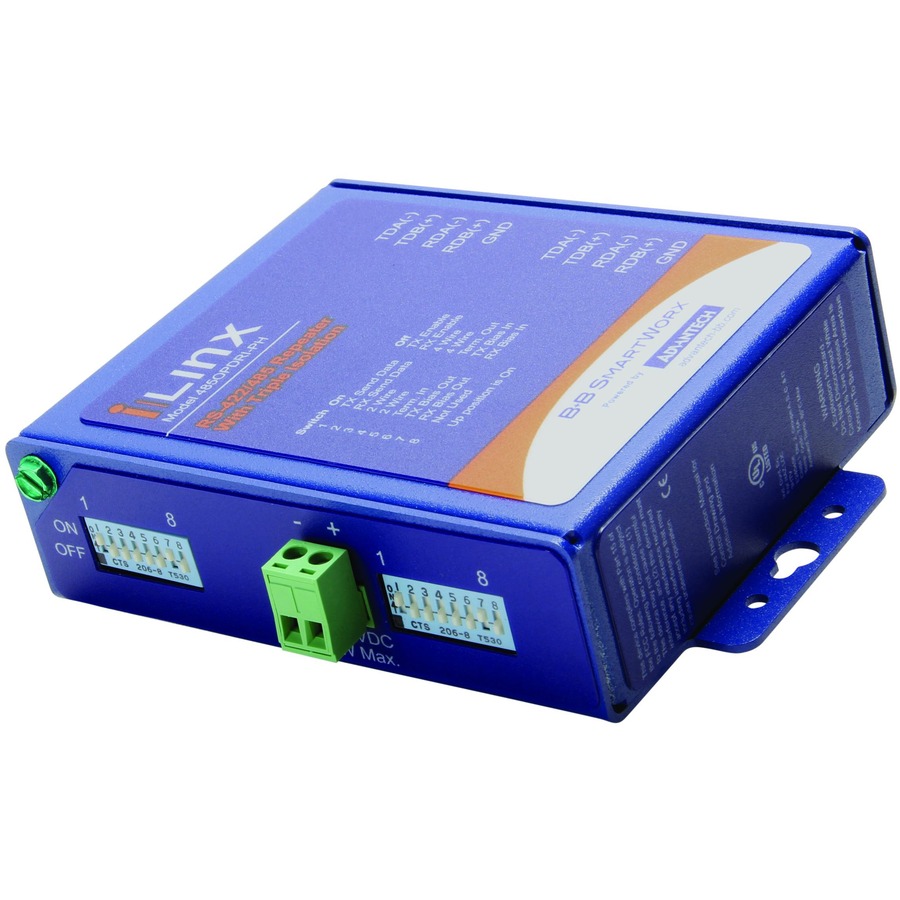

B&B HEAVY INDUSTRIAL RS-422/485 REPEATER
Manufacturer: Advantech Co., Ltd
Mfr. Part: 485OPDRI-PH
About This Product
Overview
2 and 3-way isolated optical repeater converts, protects & extends data signals
Optical isolation protects your devices from transient surges and ground loops on your data line. The optical repeaters/isolators add 4,000 feet (1.2 km) and another 32 nodes to an RS-485 data circuit. By configuring one side as RS-422 and the other as RS-485, the models can act as a converter to allow your four wire RS-422 equipment to talk to a 2-wire RS-485 device.
View and compare our optical isolation solutions below. See the Details, Specs, and Download tabs for further information on each optical repeater.
- Standard model - 485OPDR - features include 10-30 VDC operation, 2-way isolation, 2000V input/output, CE approved, UL Recognized.
- Premium model - 485OPDRi - features include 10-48 VDC operation, triple isolation, 2000V input/output power supply, UL Class 1 Div 2 approval, cUL approval, CE approved.
- Heavy Industrial / Power Utility Version - 485OPDRI-PH - features include IEC 61850-3 / IEEE 1613, 2KV isolation, -40 to 85° C, UL Class 1 Division 2.
Quick Specifications
- Product Model
- 485OPDRI-PH
- Product Type
- Signal Repeater
- Input Voltage
- 56 V DC
- Product Material
- Metal
- Height
- 6"
- Width
- 5.5"
- Depth
- 3.7"
- Weight (Approximate)
- 10.40 oz
