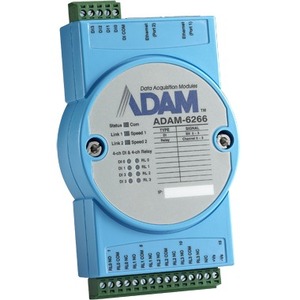

B+B SmartWorx 4-ch Relay Output Modbus TCP Module with 4-ch DI
Manufacturer: Advantech Co., Ltd
Mfr. Part: ADAM-6266
2 x Network (RJ-45) - Fast Ethernet - 10/100Base-T - DC
About This Product
Overview
In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what's worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.
- 4-ch Relay Output, 4-ch DI, 2-port Ethernet
- Daisy chain connection with auto-bypass protection
- Remote monitoring and control with mobile devices
- Group configuration capability for multiple module setup
- Flexible user-defined Modbus address
- Intelligent control ability by Peer-to-Peer and GCL function
- Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
- Web language support: XML, HTML 5, Java Script
Quick Specifications
- Product Series
- ADAM-6200
- Product Model
- ADAM-6266
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 2
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
