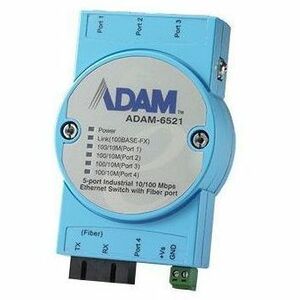

Advantech ADAM-6521-BE Ethernet Switch
Manufacturer: Advantech Co., Ltd
Mfr. Part: ADAM-6521-BE
4 Ports - Fast Ethernet - 10/100Base-T, 100Base-X - 2 Layer Supported - Multi-mode - 3 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable, Enclosure - 2 Year Limited Warranty
About This Product
Overview
- Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
- Supports full/half duplex flow control
- Supports Integrated Loop-up engine
- Supports MDI/MDI-X auto crossover
- Provides broadcast storm protection
- Supports +10 ~ 30 VDC voltage power input
- Provides surge (EFT) protection 3,000 VDC for power line
- Supports 4,000 VDC Ethernet ESD protection
- Supports operating temperatures from -10 ~ 65° C
Quick Specifications
- Product Series
- ADAM-6521
- Product Model
- ADAM-6521-BE
- Product Type
- Ethernet Switch
- Features
- IP30 Broadcast Storm Control
- Total Number of Network Ports
- 4
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 10/100 BASE-T Ethernet RJ-45 Network Port 1 x 100 Ethernet Multi-Mode SC Connector
- Media Type Supported
- Twisted Pair Optical Fiber
