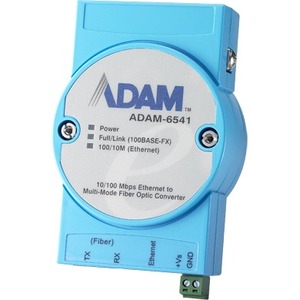

Advantech Ethernet to Multi-mode SC Type Fiber Optic Converter
Manufacturer: Advantech Co., Ltd
Mfr. Part: ADAM-6541-AE
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 100Base-FX, 10/100Base-TX - 2 km - AC Adapter - Rail-mountable, Wall Mountable, Panel-mountable
About This Product
Overview
ADAM-6541 is designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 is an ideal solution for "fiber to building" applications at central offices or local sites.
ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.
ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.
ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
- Fits neatly into a panel and allows you to keep your cables tidy and organized
Quick Specifications
- Product Model
- ADAM-6541
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- DVI
- No
- USB
- No
- Management Port
- No
