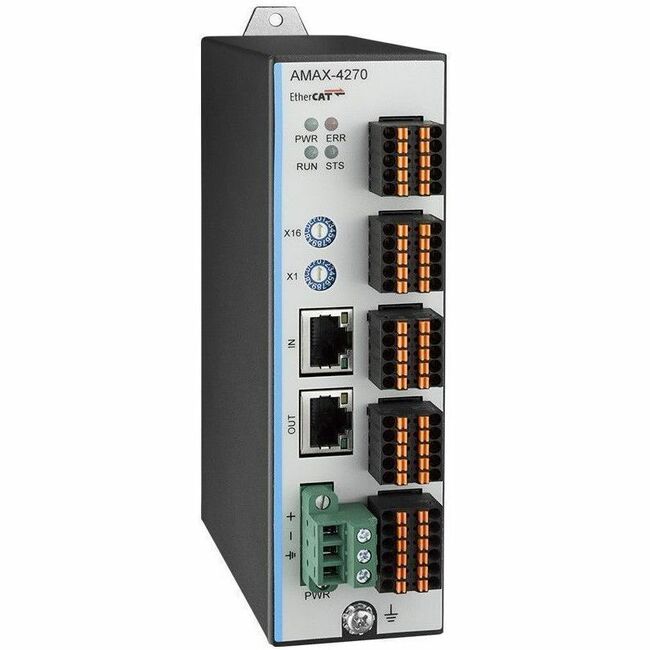

Advantech 4-channel High Speed Trigger and Latch EtherCAT Module
Manufacturer: Advantech Co., Ltd
Mfr. Part: AMAX-4270-AE
For Data Networking - 2 x RJ-45 Ethernet LAN - Twisted Pair
About This Product
Overview
Introduction
AMAX-4270 is the EtherCAT subDevice with 4-channel high speed trigger and latch function. It provides 32-bit 4-channel counter/encoder for incremental encoders, which supports
CW/CCW, Pulse/Direction and A/B mode. The trigger output supports sink, source and TTL type with 10kHz frequency, providing trigger delay time function for each trigger output
channel and 1D, 2D position compare. AMAX-4270 has 4-channel latch input with 10kHz for latching encoder value.
AMAX-4270 features high speed trigger and latch function that can help users to achieve the AOI, glue dispensing, measurement, and storage assembly applications.
- 4-channel 32-bit encoder counters
- Encoder input mode : CW/CCW , Pulse/Direction, A/B Phase
- Encoder input signal : A, B, Z
- Encoder input frequency : 5 MHz(Maximum)
- 4-channel trigger DO for position compare
- Trigger output frequency : 10kHz
- Trigger output mode : sink, source, TTL
- Supports trigger delay time setting for each channel
- 4-channel latch DI for position latch
- Latch input frequency : 10kHz
- Board ID is switchable
- Suitable for wall-mount
Quick Specifications
- Product Model
- AMAX-4270
- Product Type
- Expansion Module
- Application/Usage
- Data Networking
- Total Number of Ports
- 2
- Connector Type
- RJ-45
- Interfaces/Ports Details
- 2 x RJ-45 Ethernet LAN
- Media Type Supported
- Twisted Pair
- Height
- 5.9"
