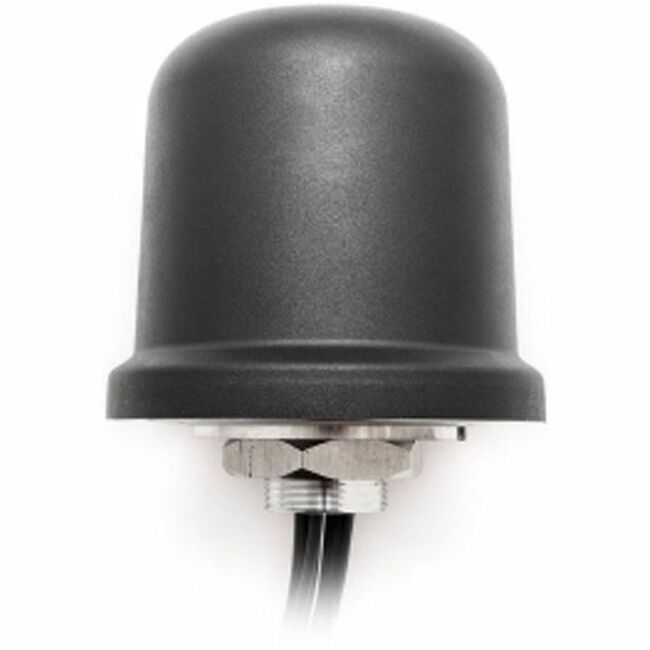

Advantech Antenna
Manufacturer: Advantech Co., Ltd
Mfr. Part: BB-2J7041BGFA-300
1710 MHz to 2170 MHz - 3 dB - 3.6 dBi - GPS, GLONASS, Cellular Network - Black/White - Screw Mount - Omni-directional - SMA Connector
About This Product
Overview
Compact heavy duty antenna designed for 4G LTE and GNSS suitable for wide range of applications within industry. Antenna is made with specific anti-rotation mounting system. Housing of the antenna is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69K standard for high pressure and hot water ingress.
- Screw Mount
- Heavy Duty antenna
- High Performance
- Ground Plane Independent
- Anti-Rotation Mounting
- Customizable Cable and Connector
- Dimensions: Ø 96 x H 90 mm
- Certificates: IP67, IP69, IK09
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 1710 MHz to 2170 MHz
- Antenna Gain
- 3 dB
- Antenna Gain (Isotropic)
- 3.6 dBi
- Voltage Standing Wave Ratio (VSWR)
- 1.6:1 1.6:1
- Connector Type
- SMA
