Advantech Antenna
Manufacturer: Advantech Co., Ltd
Mfr. Part: BB-2J7041BGFAP-300
Range - RF - 1710 MHz to 2170 MHz, 698 MHz to 960 MHz, 2500 MHz to 2700 MHz - 3 dB - 4.2 dBi - Cellular Network, Wireless Access Point, Navigation SystemScrew Mount - Omni-directional - SMA Connector
About This Product
Overview

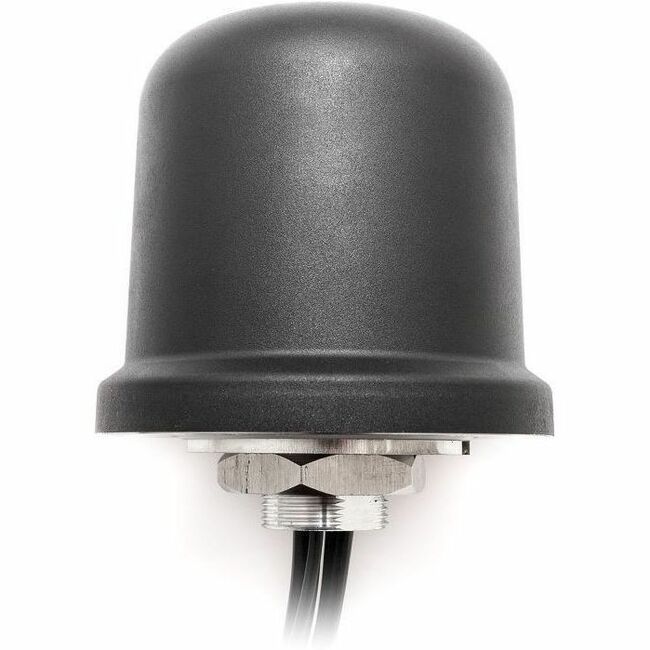

Description Compact heavy duty antenna designed for 4G LTE and GNSS suitable for wide range of applications within industry. Antenna is made with specific anti-rotation mounting system. Housing of the antenna is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69K standard for high pressure and hot water ingress.
- Screw Mount
- Heavy Duty antenna
- High Performance
- Ground Plane Independent
- Anti-Rotation Mounting
- Customizable Cable and Connector
- Dimensions: Ø 96 x H 90 mm
- Certificates: IP67, IP69, IK09
Quick Specifications
- Product Type
- Antenna
- Directivity
- Omni-directional
- Frequency Band Type
- RF
- Operating Frequency Range
- 1710 MHz to 2170 MHz 698 MHz to 960 MHz 2500 MHz to 2700 MHz
- Antenna Gain
- 3 dB
- Antenna Gain (Isotropic)
- 4.2 dBi
- Voltage Standing Wave Ratio (VSWR)
- ~1.9:1
- Connector Type
- SMA
