Advantech Antenna
Manufacturer: Advantech Co., Ltd
Mfr. Part: BB-2J7050BGFA-150
698MHz to 960MHz, 1710MHz to 2170MHz, 2500MHz to 2700MHz, 2410MHz to 2490MHz, 4920MHz to 5925MHz - 3 dB - 5.6 dBi - Cellular Network, Wireless Data Network, Industrial, GPS, GLONASSScrew Mount - Omni-directional - SMA, R-SMA Connector
About This Product
Overview

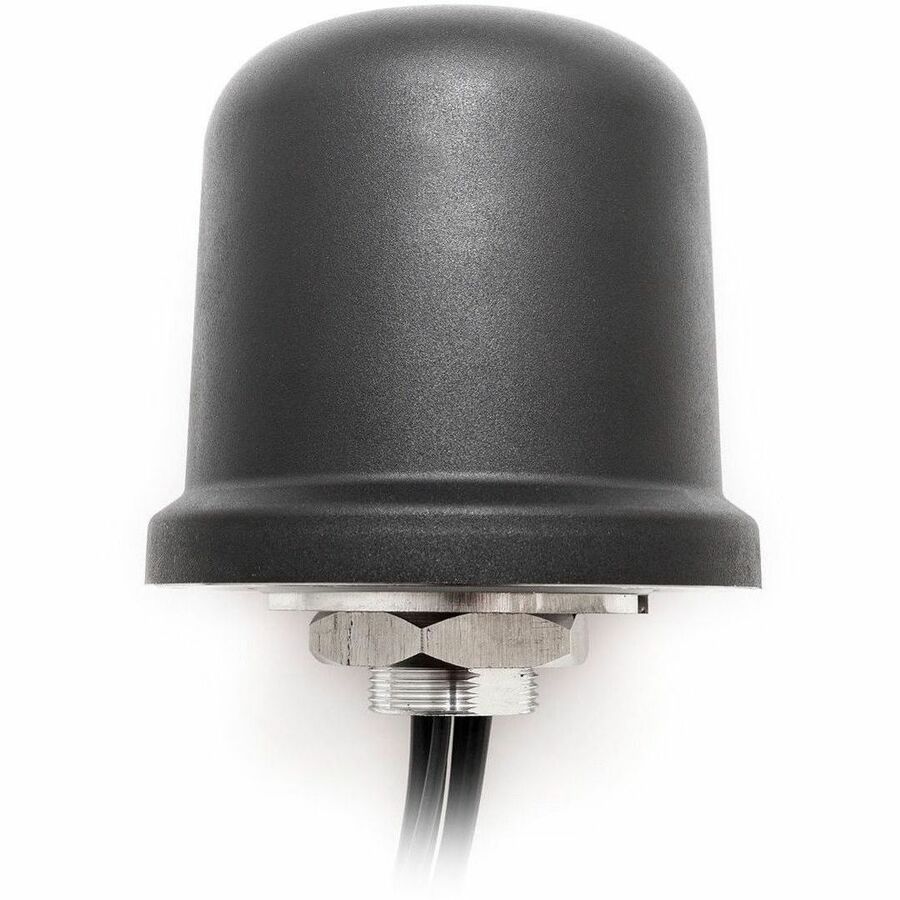

Compact heavy duty antenna designed for 4G LTE, 2.4/5.0 GHz ISM and GNSS suitable for wide range of applications within industry. Antenna is made with specific anti-rotation mounting system. Housing of the antenna is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69K standard for high pressure and hot water ingress.
- Provides optimized pattern coverage with 698MHz to 960MHz frequency
- Designed for cellular network
- Offers up to 3 dB gain
- Receive signals from multiple directions with this omnidirectional antenna
- Antenna can be mounted as screw mount
Quick Specifications
- Product Type
- Antenna
- Directivity
- Omni-directional
- Operating Frequency Range
- 698MHz to 960MHz 1710MHz to 2170MHz 2500MHz to 2700MHz 2410MHz to 2490MHz 4920MHz to 5925MHz
- Antenna Gain
- 3 dB
- Antenna Gain (Isotropic)
- 5.6 dBi
- Voltage Standing Wave Ratio (VSWR)
- 2.1:1
- Connector Type
- SMA R-SMA
- Form Factor
- Screw Mount
