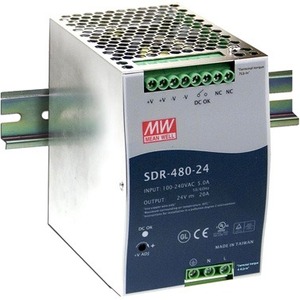

B+B SmartWorx 480W Single Output Industrial DIN RAIL With PFC Function
Manufacturer: Advantech Co., Ltd
Mfr. Part: BB-SDR-480-24
DIN Rail Mountable - 120 V AC, 230 V AC, 370 V DC Input - 24 V DC Output - 480 W - 94% Efficiency
About This Product
Overview
Model SDR-480-24 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input, single output, power-on LED display, built-in active PFC function, DC OK relay contact and peak load capability. The power supply protects against short circuit, overvoltage and overload by current limiting (hiccup after 3s).
- High efficiency 94%, low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.93
- Protections: Short-circuit, Overload, Over-voltage, Over-temperature
- Free air convection cooling
- DIN rail mountable, TS-35/7.5 or 15
- UL508 approved (industrial control equipment)
- EN61000-6-2 (EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full-load, burn-in test
Quick Specifications
- Product Line
- MeanWell
- Product Series
- SDR-480
- Product Model
- SDR-480-24
- Packaged Quantity
- 8
- Product Type
- Power Supply
- Efficiency
- 94%
- Input Voltage
- 120 V AC 230 V AC 370 V DC
- Output Voltage
- 24 V DC
