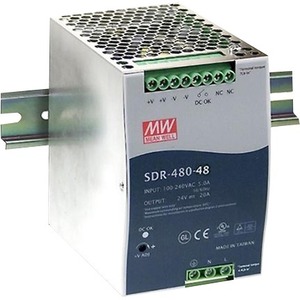

B+B SmartWorx MeanWell SDR-480-48 480W Power Supply
Manufacturer: Advantech Co., Ltd
Mfr. Part: BB-SDR-480-48
DIN Rail Mountable - 120 V AC, 230 V AC, 370 V DC Input - 48 V DC Output - 480 W - 94% Efficiency
About This Product
Overview
Model SDR-480-48 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input, single output, power-on LED display, built-in active PFC function, DC OK relay contact and peak load capability. The power supply protects against short circuit, overvoltage and overload by current limiting (hiccup after 3s).
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.94
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
Quick Specifications
- Product Line
- MeanWell
- Product Series
- SDR-480
- Product Model
- SDR-480-48
- Packaged Quantity
- 8
- Product Type
- Power Supply
- Efficiency
- 94%
- Input Voltage
- 120 V AC 230 V AC 370 V DC
- Output Voltage
- 48 V DC
