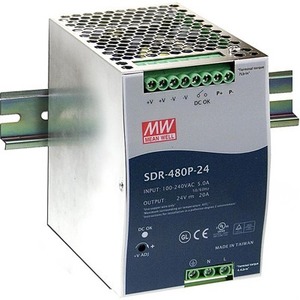

B+B SmartWorx MeanWell SDR-480P-24 Power Supply
Manufacturer: Advantech Co., Ltd
Mfr. Part: BB-SDR-480P-24
DIN Mountable - 120 V AC, 230 V AC, 370 V DC Input - 24 V DC Output - 480 W
About This Product
Overview
Model SDR-480P-24 power supply is enclose in a DIN rail mountable case with touch-guard screw terminals and features universal input, single output, power-on LED display, built-in active PFC function, DC OK relay contact and peak load capability. The power supply protects against short circuit, overvoltage and overload by current limiting (hiccup after 3s). Model SDR-480P-24 also supports parallel function.
- Limits current to the safety level and manages electrical faults
- 24 V DC ensures steady and uninterrupted power supply to your device
- The maximum output power of 480 W boosts up the performance
Quick Specifications
- Product Line
- MeanWell
- Product Series
- SDR-480
- Product Model
- SDR-480P-24
- Product Type
- Power Supply
- Input Voltage
- 120 V AC 230 V AC 370 V DC
- Output Voltage
- 24 V DC
- Output Current
- 20 A
- Output Power
- 480 W
