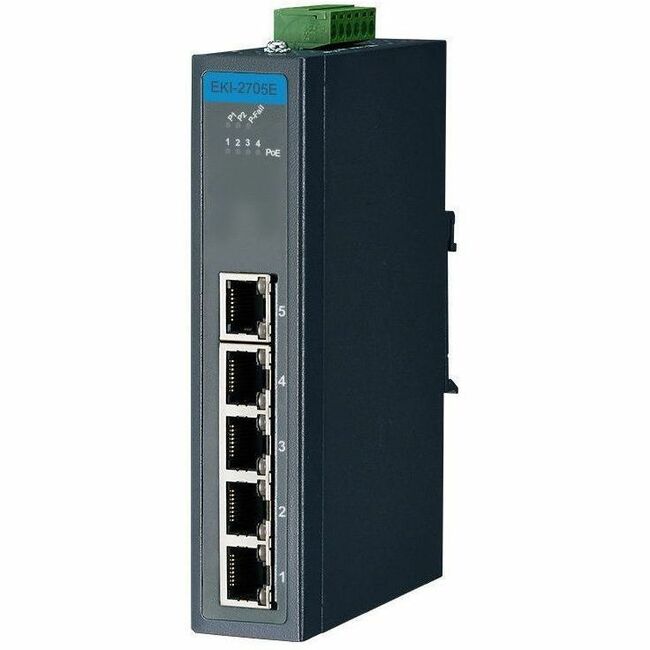

Advantech EKI-2705E-1GPI Ethernet Switch
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 2 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Wall Mountable, Enclosure, Compact - 5 Year Limited Warranty
About This Product
Overview
The EKI-2705 series supports 24 ~ 48VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse. The EKI-2705 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports. Each port of EKI-2705 has two LED indicators to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting easily and fast. EKI-2705 comes with a compact metal housing rated at IP30 to protect against dusty industrial environments.
- Supports 10/100/1000Mbps auto negotiation (EKI-2705G)
- Supports jumbo frame transmission up to 9k bytes
- DIN-rail with IP30 metal mechanism ƒ Redundant 24 ~ 48 VDC power input
- 4 x IEEE 802.3 af/at PoE /PoE+ ports & 1 x Giga (Fast Ethernet) Copper ports
Quick Specifications
- Product Series
- EKI-2705
- Product Model
- EKI-2705E-1GPI
- Product Type
- Ethernet Switch
- Features
- IP30
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x 10/100/BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port 1 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
- Media Type Supported
- Twisted Pair
