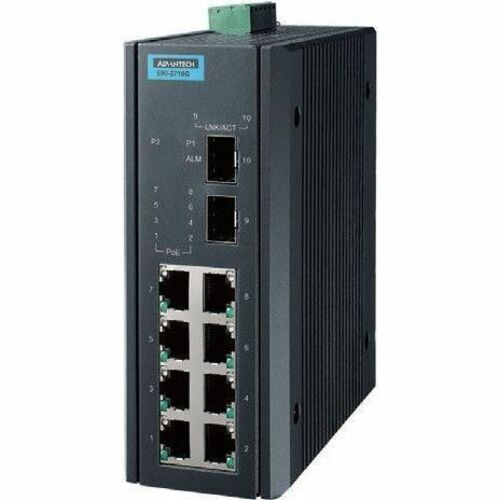

Advantech EKI-2710G-2FPI Ethernet Switch
8 Ports - Gigabit Ethernet - 10/100/1000Base-T, 10/100/1000Base-TX, 100Base-FX, 1000Base-X - 2 Layer Supported - 2 SFP Slots - 5.28 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable, Enclosure - 5 Year Limited Warranty
About This Product
Overview
The EKI-2708G and EKI-2710G PoE switch are unmanaged Ethernet switches supporting 8 ports PoE+ (Power over Ethernet) and compliant with IEEE 802.3at/af standards. Provides up to 30 watts of power per port and fulfill the power budget of max. 240 watts on system with the power input from 12~48VDC. The switch provides a relay output for an event alarm which activate the alarm to notify administrators. Robust design for harsh environment, din rail mounting and fast startup with plug and work.
The EKI-2708G and EKI-2710G support IEEE 802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
- 8 x Gigabit Ethernet ports or plus 2 Gigabit SFP ports
- Support 8 x IEEE 802.3at/af PoE ports for PD demands
- Up to 30W output per PoE port
- Supports jumbo frame transmission up to 9k bytes
- DIN-rail with IP30 metal mechanism
- 12 ~ 48 VDC redundant dual power input and 1 relay output
- Wide operating temperature range of -40 ~ 75°C
- Supports EMC Level 4 protection for extreme outdoor environments
- Supports LAN surge protection up to ±6 kV
- Equipped with a pull-down DIN rail mounting kit for easy installation across various DIN rail dimensions
Quick Specifications
- Product Model
- EKI-2710G-2FPI
- Product Type
- Ethernet Switch
- Features
- IP30 Surge Protection
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE RJ-45 Network Port 2 x Gigabit Ethernet SFP Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
