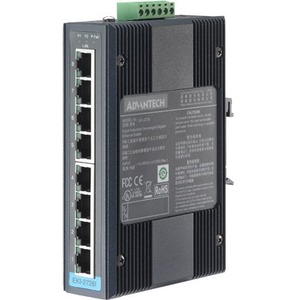

Advantech 8-port Industrial Unmanaged GbE Switch W/T
8 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - DIN Rail Mountable, Wall Mountable
About This Product
Overview
The EKI-2728 supports Gigabit Ethernet. The power is a +12 ~ 48 V DC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2728 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
- Effectively increases available bandwidth on your network
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor for added reliability and dependability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Model
- EKI-2728I
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 8
- Uplink Port
- No
- Modular
- No
- Stack Port
- No
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network
- Media Type Supported
- Twisted Pair
