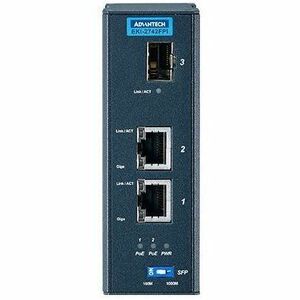

Advantech Transceiver/Media Converter
Manufacturer: Advantech Co., Ltd
Mfr. Part: EKI-2742FPI-B
Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-TX, 100/1000Base-X, 10/100/1000Base-T - 1000 Mbit/s - 0.10 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - DIN Rail Mountable, Wall Mountable
About This Product
Overview
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2741FPI / EKI-2742FPI are compliant IEEE 802.3af/at and supply to 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C.
- Supports multi-rate for SFP slot
- IEEE 802.3af/at compliant
- Power input 24-48 VDC, supply 30W per port
- Provides slim size and DIN-rail/Wall mount with IP31 metal mechanism
- Supports operating temperatures from -40 to 75°C
Quick Specifications
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of 30W PoE (RJ-45) Ports
- 2
- PoE Port Type
- PSE
- Media Type Supported
- Twisted Pair Optical Fiber
- Maximum Data Transfer Rate
- 1000 Mbit/s
- Maximum Distance Supported
- 0.10 km
