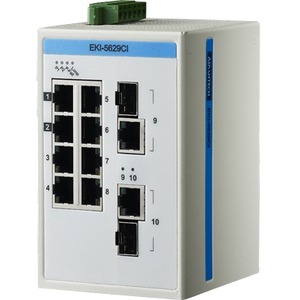

Advantech 8FE + 2GE Combo Ethernet ProView Switch with Wide Temperature
8 Ports - 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - Optical Fiber, Twisted Pair - Wall Mountable, DIN Rail Mountable
About This Product
Overview
The EKI-5629C/CI and EKI-5626C/CI is the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5629C/CI and EKI-5626C/CI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
- Ethernet Switch provides dependable and powerful connectivity for maximum usability
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Wall Mountable form factor allows hassle-free and easy usage with increased efficiency
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Line
- ProView
- Product Series
- EKI-5000
- Product Model
- EKI-5629CI
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 8
- Modular
- Yes
- Port/Expansion Slot Details
- 8 x Fast Ethernet Network 2 x Gigabit Ethernet Network 2 x Gigabit Ethernet Expansion Slot
- Media Type Supported
- Optical Fiber Twisted Pair
