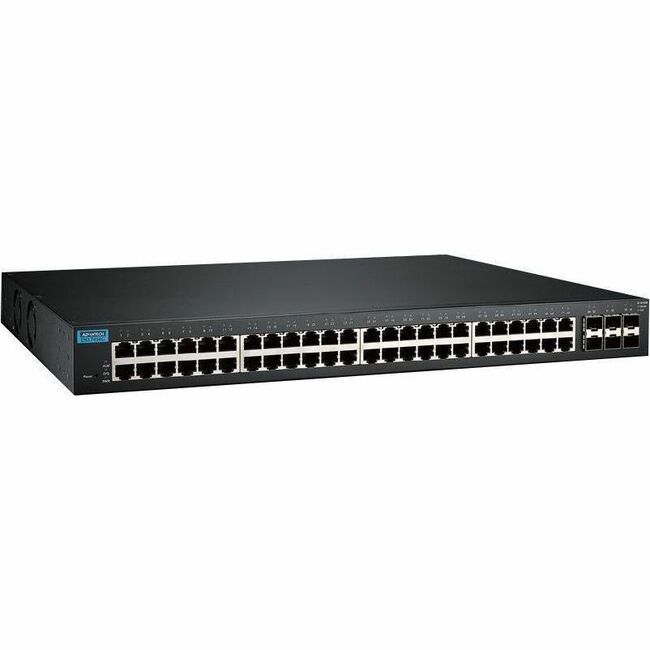

Advantech EKI-7454G-6X Ethernet Switch
Manufacturer: Advantech Co., Ltd
Mfr. Part: EKI-7454G-6X-AE
48 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X, 10GBase-X - 2 Layer Supported - 36 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable, Enclosure
About This Product
Overview
The EKI-7454G-6X is equipped with 48 Gigabit Ethernet ports plus 6 10G SFP+ ports. It is ideal for large-scale networks with server and surveillance applications, that involve high resolution videos and images, to achieve high performance and large-scale data transmission. Designed for rack-mount installation with 1U 19" design, integrates layer 2 switching software, delivering wire speed across all ports up to 216 Gbps for layer 2 and network nodes.
- 48 Gigabit Ethernet Ports and 6 10G SFP Ports
- 0 to 60°C operating temperature range
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
- IXM Function Enables Fast Deployment
- Redundancy: Gigabit X-Ring Pro ((Ultra High-Speed Recovery Time < 20 ms), RSTP/STP (802.1w/1D), MSTP
Quick Specifications
- Product Model
- EKI-7454G-6X
- Product Type
- Ethernet Switch
- Features
- Broadcast Storm Control Remote Monitoring (RMON) Support Dual Image Strict Priority Queuing (SPQ)
- Total Number of Network Ports
- 48
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 48 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port 6 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
