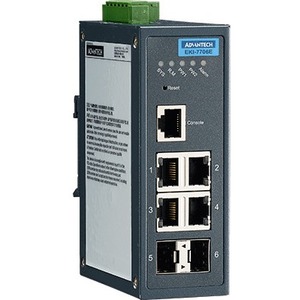

Advantech 4FE+2G SFP Managed Ethernet Switch, -40~75?
Manufacturer: Advantech Co., Ltd
Mfr. Part: EKI-7706E-2FI-AE
4 Ports - Manageable - 2 Layer Supported - Modular - 2 SFP Slots - Optical Fiber, Twisted Pair - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
About This Product
Overview
EKI-7706E-2F/2FI supports 4 Fast Ethernet ports and 2 SFP ports. It provides abundant ports to connect many devices and it is embedded with Advantech's IXM function, which benefits users with fast deployment and can dramatically save engineers time and costs. The EKI-7706E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7706E series is equipped with X-Ring Pro which can achieve ultra-high-speed recovery times of less than 20 ms to ensure network stability.
- 4 Fast Ethernet ports + 2 SFP ports
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- -40 ~ 85 °C wide-range operating temperature (EKI-7706E-2FI)
- Dual 12~48 VDC power input and 1 relay output
Quick Specifications
- Product Model
- EKI-7706E-2FI
- Packaged Quantity
- 1
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 4
- Modular
- Yes
- Port/Expansion Slot Details
- 4 x Fast Ethernet Network 2 x Gigabit Ethernet Expansion Slot
- Media Type Supported
- Optical Fiber Twisted Pair
- Ethernet Technology
- Fast Ethernet Gigabit Ethernet
