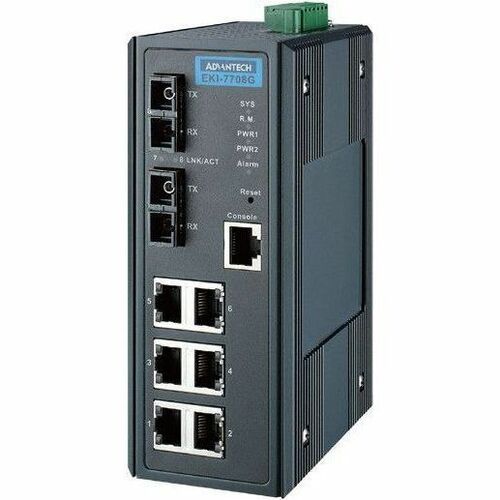

Advantech EKI-7708G-2MI Ethernet Switch
6 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-SX/LX - 2 Layer Supported - Multi-mode - 7 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable, Enclosure - 5 Year Limited Warranty
About This Product
Overview
Advantech's EKI-7708G-2MI/2SI are cost effective managed industrial Ethernet switches which support Gigabit Ethernet via built in fiber optic ports. These solutions feature embedded IXM functions to hasten deployment and reduce engineering time/costs. These switches extend transmission distances beyond the 100 m (328 ft) copper cable limitations using fiber port they support 550 m (1804 ft) in multi-mode and 10 km (6.21 mi) in single mode. The EKI-7708G-2MI/2SI series supports WebAccess/NMS to aid in network maintenance and failure prevention. These managed Ethernet switches deliver ultra-high speed recovery times of <20 ms using X-Ring Pro to ensure network stability. This solution supports broad operating temperatures (-40 ~ 75 °C /-40 ~ 167 °F), for use in traffic applications.
- Provides 6 x 10/100/1000 Mbps Ethernet ports with RJ45 connector
- Provides 2 x 1000 Mbps fiber ports with SC type connector for 1000Base-SX/LX device
- Redundancy: X-Ring Pro (ultra-high speed recovery time <20 ms), RSTP/ STP(802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1X (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, and Console
- Supports redundant 12 ~ 48 VDC and 24VAC power input
- Provides flexible mounting: DIN-rail and wall mount
Quick Specifications
- Product Model
- EKI-7708G-2MI
- Product Type
- Ethernet Switch
- Features
- IP30 Broadcast Storm Control
- Total Number of Network Ports
- 6
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 6 x 10/100/1000Base-TX Gigabit Ethernet RJ-45 Network Port 2 x 1000Base-SX/LX Gigabit Ethernet Multi-Mode SC Connector
- Media Type Supported
- Twisted Pair Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
