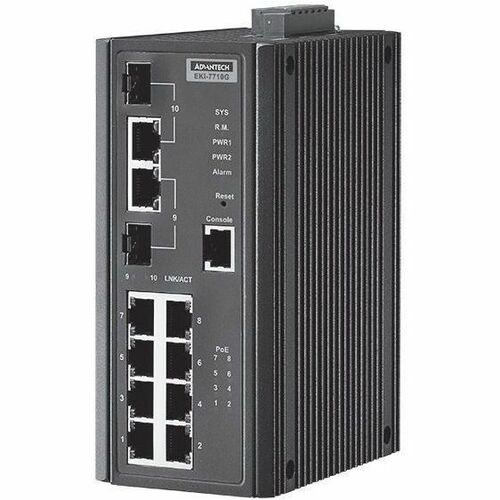

Advantech 8G+2G Port Gigabit Managed Redundant Industrial PoE Switch
10 Ports - Manageable - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-TX - 2 Layer Supported - 12.10 W Power Consumption - 120 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Enclosure - 5 Year Limited Warranty
About This Product
Overview
The EKI-7710G-2CP/2CPI support 8 Gigabit PoE ports and 2 Gigabit combo ports. They provide up to 30W per port for high-power-consumption powered devices. They come embedded with Advantech IXM function, which can benefit users with fast deployment and can dramatically save considerably on engineering time and costs. The EKI-7710G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability
- 8 x IEEE 802.3 af/at PoE Gigabit ports + 2 x Gigabit copper/SFP combo ports
- SFP socket for easy and flexible fiber expansion
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment ƒ Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB ƒ NEMA TS2 for traffic control
- EN50121-4 approval for railway trackside deployment
- Dual 24 ~ 48 VDC power input and 1 x relay output
- Wide operating temperature range of -40 ~ 75°C (EKI-7710G-2CPI)
Quick Specifications
- Product Series
- EKI-7710G
- Product Model
- EKI-7710G-2CP
- Product Type
- Ethernet Switch
- Features
- Broadcast Storm Control Strict Priority Queuing (SPQ) Access Control List Remote Monitoring (RMON) Support Dual Image IP30
- Total Number of Network Ports
- 10
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE+ RJ-45 Network Port 2 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45/SFP Combo Port
- Media Type Supported
- Optical Fiber Twisted Pair
