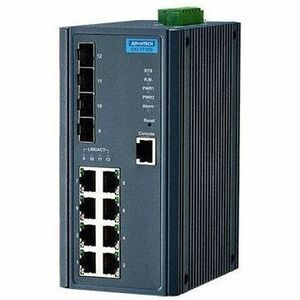

Advantech EKI-7712G-4FI Ethernet Switch
8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX - 2 Layer Supported - 4 SFP Slots - 12.10 W Power Consumption - Twisted Pair, Optical Fiber - Enclosure, DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
About This Product
Overview
The EKI-7712G-4F and EKI-7712G-4FI provide users with abundant port options for connecting to a range of different device types with 8 Gigabit ports and 4 SFP (mini-GBIC) ports. These units are embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the series are equipped with X-Ring Pro, which can achieve ultra-highspeed recovery times of <20 ms, thus ensuring network stability. The EKI-7712G-4FI also features a wide operating temperature of -40 to 75°C and NEMA TS2 rating, making it ideal for use in traffic applications. Both the EKI-7712G-4F and EKI-7712G-4FI comply with EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.
- 8 x Gigabit Ethernet ports + 4 x SFP ports
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 12 ~ 48 VDC power input and 1 x relay output
Quick Specifications
- Product Series
- EKI-7712G
- Product Model
- EKI-7712G-4FI
- Product Type
- Ethernet Switch
- Features
- Broadcast Storm Control Strict Priority Queuing (SPQ) Access Control List DHCP Relay Remote Monitoring (RMON) Support Dual Image IP40
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45 Network Port 4 x Gigabit Ethernet SFP (mini-GBIC) Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
