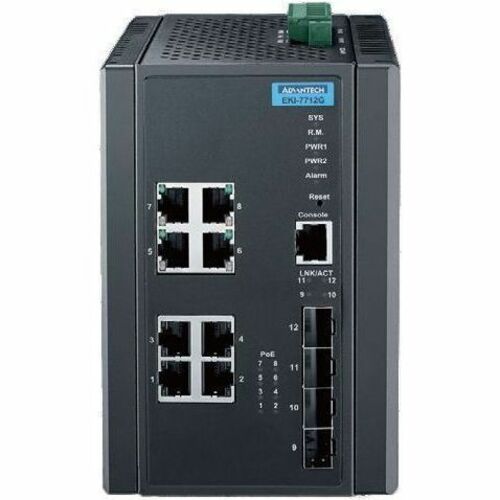

Advantech EKI-7712G-4FMPI Ethernet Switch
8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - 4 SFP Slots - 12 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
About This Product
Overview
The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x IEEE 802.3af/at PoE Gigabit ports, 2 x IEEE 802.3bt PoE Gigabit ports, and 4 x SFP ports, EKI-7712G-4FMPI provides multiple usages for different scenarios. The EKI-7712G-4FMPI is embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. It is also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms to ensure network stability.
- 8 x Gigabit Ethernet ports + 4 x SFP ports
- Support 2 IEEE 802.3bt class 8 90W and 6 IEEE 802.3af/at PoE ports
- Redundancy: X-Ring Pro (ultra-high-speed recovery time,
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 53 ~ 57 VDC power inputs and 1 x relay output
Quick Specifications
- Product Series
- EKI-7712G
- Product Model
- EKI-7712G-4FMPI
- Product Type
- Ethernet Switch
- Features
- IP30 Strict Priority Queuing (SPQ) Access Control List Remote Monitoring (RMON)
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 6 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE+ RJ-45 Network Port 2 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE RJ-45 Network Port 4 x Gigabit Ethernet SFP Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
