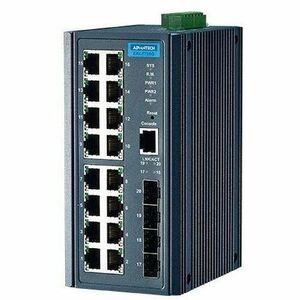

Advantech 16GE+4G SFP Port Gigabit Managed Redundant Industrial Switch
16 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - 4 SFP Slots - 14.50 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
About This Product
Overview
The EKI-7720G-4F and EKI-7720G-4FI provide users with abundant port options for connecting to various device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. These switches are embedded with Advantech's IXM function, which can benefit users with fast deployment and can dramatically save on engineering time and costs. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. The EKI-7720G-4FI in particular features a wide operating temperature range of wide -40 ~ 75°C.
- 16 x Gigabit Ethernet ports + 4 x SFP ports
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 12 ~ 48 VDC power input and 1 x relay output
Quick Specifications
- Product Model
- EKI-7720G-4F
- Product Type
- Ethernet Switch
- Data Link Protocols
- HTTP HTTPS
- Features
- IP30 Port Mirroring Unicast Storm Control Multicast Storm Control Link Aggregation DHCP Snooping Remote Monitoring (RMON)
- Total Number of Network Ports
- 16
- Network (RJ-45)
- Yes
- Stack Port
- Yes
- Port/Expansion Slot Details
- 16 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot
