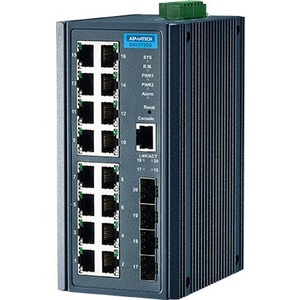

Advantech 16GE+4SFP Port Gigabit Managed Redundant Industrial Switch
16 Ports - Manageable - 2 Layer Supported - Modular - 4 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
About This Product
Overview
EKI-7720G-4F/4FI supports 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advan-tech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720G series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720G-4FI).
- 16 Gigabit Ethernet ports + 4 SFP ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- NEMA TS2 for Traffic Control
- EN50121-4 approval for Railway trackside deployment
- -40 ~ 75°C wide-range operating temperature (EKI-7720G-4FI)
- Dual 12~48 VDC power input and 1 relay output
Quick Specifications
- Product Series
- EKI-7720G
- Product Model
- EKI-7720G-4FI
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 16
- Modular
- Yes
- Port/Expansion Slot Details
- 16 x Gigabit Ethernet Network 4 x Gigabit Ethernet Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
