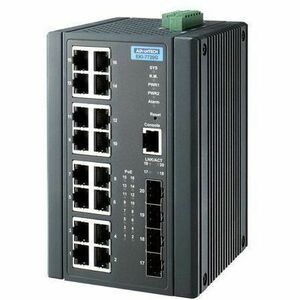

Advantech EKI-7720G-4FPI Ethernet Switch
16 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-X, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX, 100Base-FX - 2 Layer Supported - 4 SFP Slots - 16 W Power Consumption - 420 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable, Enclosure - 5 Year Limited Warranty
About This Product
Overview
The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation. In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.
- 16 x Gigabit Ethernet ports + 4 x SFP ports
- Support up to 16 x IEEE 802.3at/af PoE ports for PD demands
- Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
- IXM function for fast deployment
- Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Supports NMS for easy and visualized to monitor and manage network remotely
- Dual 48 ~ 57VDC power inputs and 1 x relay output
Quick Specifications
- Product Series
- EKI-7700
- Product Model
- EKI-7720G-4FPI
- Product Type
- Ethernet Switch
- Features
- IP30 Broadcast Storm Control Strict Priority Queuing (SPQ) DHCP Snooping Access Control List DHCP Relay Remote Monitoring (RMON)
- Total Number of Network Ports
- 16
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 16 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE RJ-45 Network Port 4 x Gigabit Ethernet SFP Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
