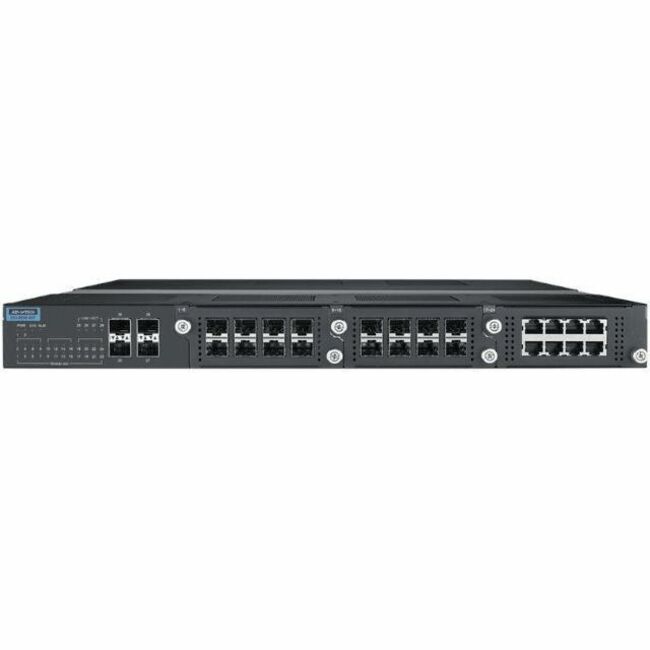

Advantech EKI-8528-4XFL Ethernet Switch
Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X, 10GBase-X, 100Base-FX, 1000Base-TX, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX - 2 Layer Supported - Modular - 16 SFP Slots - 75 W Power Consumption - Twisted Pair, Optical Fiber - 1U - Rack-mountable, Enclosure
About This Product
Overview
EKI-8528 series is a standard 19" rackmount Layer 3 and 2 modular managed switch which provides up to 24 Gigabit ports and 4x10Gigabit uplink solution, it is designed for medium and large Industrial networking environment, as a distribution level L3 switch, it supports RIPv1/v2, OSPFv3, VRRP routing protocols, PIM multiple routing feature and provides 4.5K routing table size for data exchange among multiple network nodes. Users can choose different Ethernet modules (RJ45 or SFP) and Power modules(24-48VDC or 110/220VAC) for bringing high flexibility to fulfil various kinds of industrial scenario, such as power stations and trackside signaling which are connecting the wide area of networking devices.
- 3 x 8 Gigabit ports hot-swappable module slots + 4 x 10G SFP+ ports
- Support VRRP, RIP v1/v2, OSPFv3, PIM and NAT (EKI-8528-4XF only)
- TSN and 1588v2(PTP) supported
- Features IEEE 802.1AS Time Synchronization, IEEE 802.1Qbu Frame Preemption, IEEE 802.1Qbv Time Aware Shaper and IEEE 802.1CB Seamless Redundancy
- Redundancy: X-Ring Pro (< 20ms @250units), X-Chain
- Security: 802.1X (port-based, MD5/PEAP encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
- Wide operating temperature range of -40~75°C
- Dual power module slot options for 110/220VAC or 24-48VDC input module
- IIoT module slots reserved for optional HSR/PRP module
Quick Specifications
- Product Series
- EKI-8528
- Product Model
- EKI-8528-4XFL
- Product Type
- Ethernet Switch
- Features
- Hot-swappable IP30 Strict Priority Queuing (SPQ) Broadcast Storm Control DHCP Relay Support Dual Image DHCP Snooping Access Control List
- Network (RJ-45)
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot 16 x Gigabit Ethernet SFP Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
