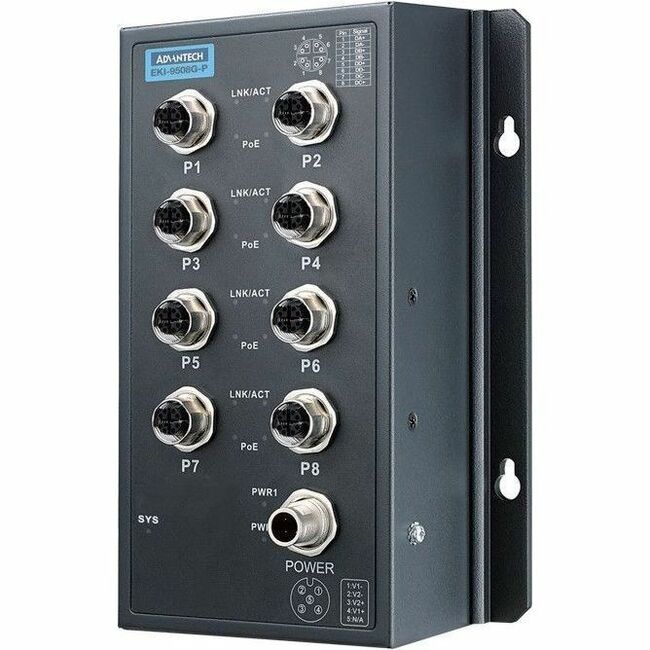

Advantech EKI-9508G-PH Ethernet Switch
Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5 W Power Consumption - 90 W PoE Budget - PoE Ports - Wall Mountable, Enclosure
About This Product
Overview
EKI-9500 series switch is designed for railway application, with rugged and high EMC performance. EKI-9500 series is the suitable networking solution for rolling stock and wayside applications. EKI-9500 series provide M12 connectors for Ethernet/ console/ relay/ power-input connections to ensure tight & robust connectivity, to guarantee reliable operation against environmental disturbances, such as vibration and shock on train. EKI-9508G-PH & EKI-9508G-PL is a PoE Ethernet switch, it provides 8 x Gigabit Ethernet M12 X-code interface with IEEE802.3af/at PoE(Power Over Ethernet) function. PoE ports can total provide up to 90Watts power budget for P.D. devices (such as camera, IP-phone and wireless access point). EKI-9508G-PH/ PL features a "slim" design, can be easy deployed with its slender size and let network deployment more simple in crowded carriage/ cabinet.
- Complies with EN50155
- 8 port M12 X-coded 10/100/1000Mbps PoE ports
- Power input EKI-9508G-PH: 72/96/110 VDC EKI-9508G-PL: 24/48 VDC
- Operating Voltage EKI-9508G-PH: 50.4~137.5 VDC EKI-9508G-PL: 16.8~60 VDC
- IEEE 802.3at PoE+ to supply 30 W of power
- IEEE 802.3af PoE to supply 15.4 W of power
- M12 connector with IP50 protection
- Operating temperature of -40 ~ 70°C
Quick Specifications
- Product Series
- EKI-9500
- Product Model
- EKI-9508G-PH
- Product Type
- Ethernet Switch
- Features
- IP50
- Port/Expansion Slot Details
- 8 x M12 X-Coded 10/100/1000 BASE-T PoE+ Gigabit Ethernet Port
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
