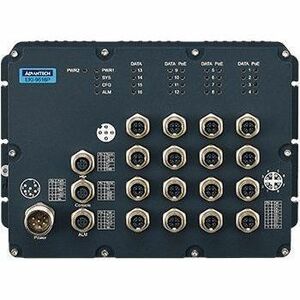

Advantech EKI-9516P-HV Ethernet Switch
Manageable - Ethernet, Fast Ethernet - 10/100Base-T - 2 Layer Supported - 26.40 W Power Consumption - PoE Ports - Wall Mountable, DIN Rail Mountable, Enclosure - 5 Year Limited Warranty
About This Product
Overview
EKI-9512D M12 Managed Ethernet Switch is designed for railway applications, including rolling stock. EKI-9512D switch uses M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock. EKI-9512D provides 12 Fast Ethernet M12 ports. In addition, EKI-9512D provides a wide power input range of 24/36/48/72/96/110 VDC; the dual, isolated power input increases the reliability of your communications system. The -40 to 70° C operating temperature and IP67-rated waterproof enclosure allow deployment in harsh environments. EKI-9512D is compliant with the essential sections of the European railway standard EN 50155, EN50121-3-2 covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.
- Complies with EN50155
- All 10/100 Mbps connections support dual ring protection and non-blocking traffic forwarding
- X-Ring Pro supports rapid and predictable convergence
- Provides M12 connector with IP67 protection
- Supports wide operating temperatures from -40 ~ 70°C
- Wide Range Power Input (24/36/48/72/96/110 VDC)
Quick Specifications
- Product Series
- EKI-9516
- Product Model
- EKI-9516P-HV
- Product Type
- Ethernet Switch
- Features
- IP67 Broadcast Storm Control Strict Priority Queuing (SPQ) Remote Monitoring (RMON) DHCP Relay Dynamic ACL Support Dual Image
- Port/Expansion Slot Details
- 12 x M12 D-Code 10/100BaseT PoE Ethernet Network Port 4 x M12 D-Code 10/100BaseT Ethernet Network Port
- Ethernet Technology
- Ethernet Fast Ethernet
- Network Technology
- 10/100Base-T
- Maximum Data Transfer Rate
- 12.50 MB/s
