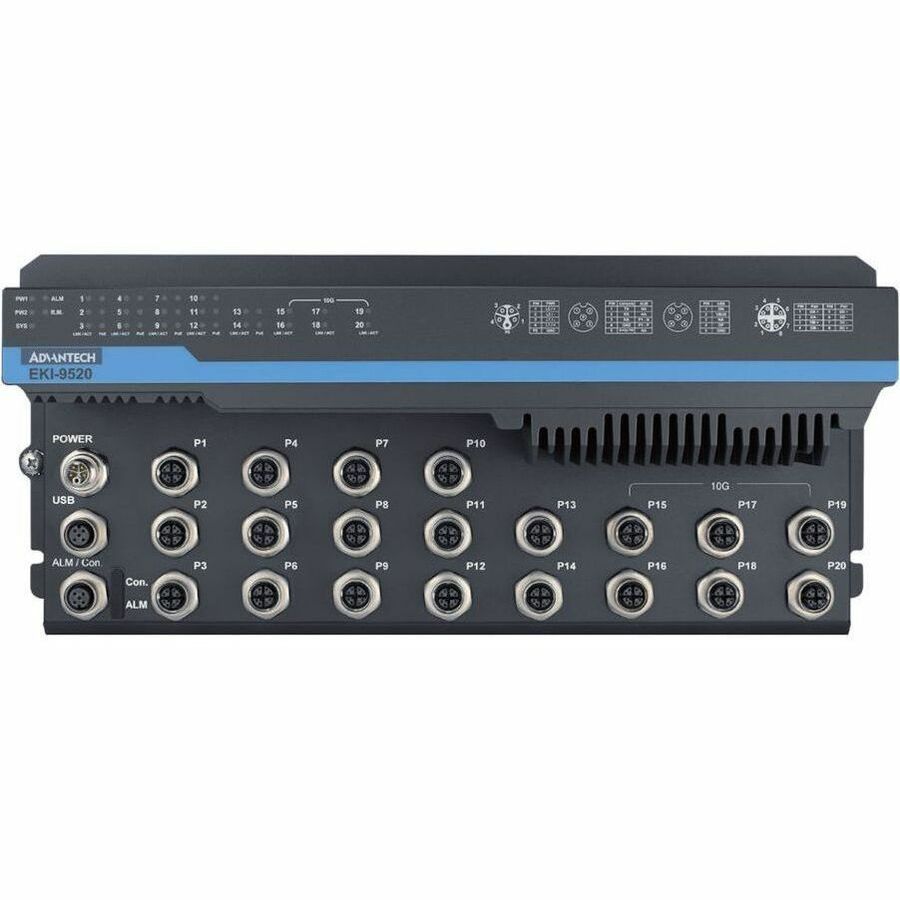

Advantech EKI-9520H-6XPW-A Ethernet Switch
Manageable - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T - 2 Layer Supported - 50 W Power Consumption - 100 W PoE Budget - PoE Ports - Wall Mountable, Enclosure
About This Product
Overview
Advantech's EKI-9520H Ethernet switch is engineered with a ruggedized design and superior EMC performance, making it ideal for rolling stock, wayside control, and other railroad applications. Tailored to meet the demands of modern transportation systems, this next-generation EN50155 Ethernet switch enhances both new and existing trains. With 6 x 10Gbps uplink speeds, it efficiently handles large volumes of data traffic, while its 2.5/5G and multigigabit ports support cutting-edge Wi-Fi 6 technology. The EKI-9520H offers users a versatile solution for a wide range of applications, helping to build advanced and reliable transportation services.
- 14 x 1G and 6 x 10G ports for high speed application.
- Up to 14 x IEEE802.3af/at PoE ports
- M12 connector with ruggedized metal housing
- DHCP relay and DHCP option 82 for flexible host configuration
- Provides M12-USB Dongle for quick configuration and backup
- Special mechanism design to save cabling space
- Wide operating power input rage: 16.8~137.5VDC
Quick Specifications
- Product Model
- EKI-9520H-6XPW-A
- Product Type
- Ethernet Switch
- Features
- IP20 Strict Priority Queuing (SPQ) Broadcast Storm Control DHCP Snooping Access Control List DHCP Relay Support Dual Image
- Port/Expansion Slot Details
- 14 x M12 5Pin X-Coded 10/100/1000Base-T Gigabit Ethernet PoE Port 6 x M12 5Pin X-Coded 2.5/5/10 Base-T Gigabit Ethernet PoE Port
- Ethernet Technology
- Gigabit Ethernet 2.5 Gigabit Ethernet 5 Gigabit Ethernet 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T 2.5GBase-T 5GBase-T 10GBase-T
- Maximum Data Transfer Rate
- 1.25 GB/s
- Layer Supported
- 2
