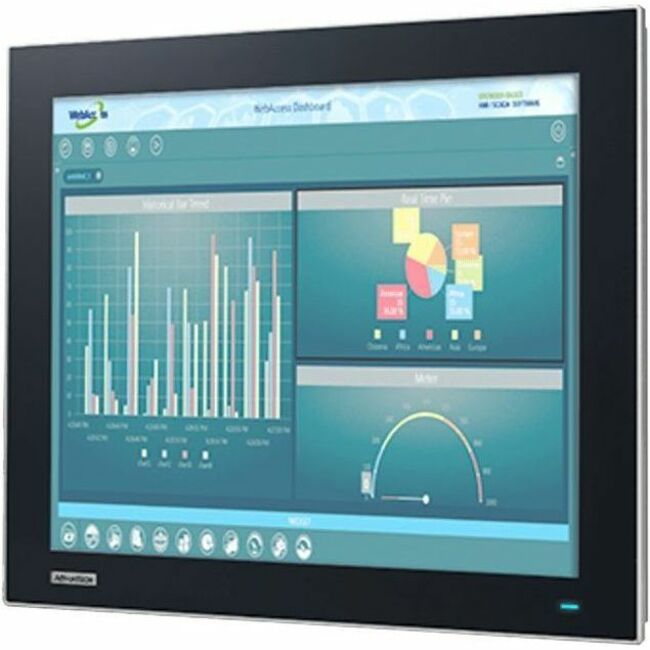

Advantech ESRP-CMS-TPC1751 Thin Client Atom E3845 Quad-core (4 Core) 1.91 GHz
Intel Chip - 4 GB RAM DDR3L SDRAM - Gigabit Ethernet - 17" Active Matrix TFT LCD SXGA Touchscreen Display - 1280 x 1024 - LED - HDMI - Network (RJ-45) - 4 Total USB Port(s) - 3 USB 2.0 Port(s) - 1 USB 3.0 Port(s) - 58 W
About This Product
Overview
Introduction
Realize the true value of thin client and centralized management technologies with Advantech's ThinManager compatible industrial thin clients. ACP's ThinManager, the leading thin client solution for the factory floor, and Advantech's industrially hardened thin client hardware provide a unique solution for centralized management of factory floor applications.
ESRP-CMS-TPC1751 is the next-generation model of Advantech's 17" industrial panel PC. Equipped with a 17" XGA TFT LED LCD, low-power Intel® Atom™ E3845, 1.91GHz, quadcore processor, and 4 GB of DDR3L SDRAM, TPC-1251T(B) delivers high-performance computing in a compact, fanless system. For enhanced durability to satisfy diverse industrial automation applications, ESRP-ESRP-CMS-TPC1751 supports a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and features a true-flat 5-wire resistive touchscreen with IP66-rated front panel, die-cast aluminum alloy front bezel, and 100 x 100 VESA mount kit.
- Verified with ACP ThinManager, ACP BIOS enabled
- Industrial-grade 17" XGA TFT LCD with 50K lifetime and LED backlight
- Intel® Atom™ E3845 1.91 GHz quad-core processor with 4 GB DDR3L SDRAM
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
- Front-facing LED indicators to show operating status
- Compact, fanless system with aluminum alloy front bezel and chassis grounding protection
- Supports VESA mount (100 x 100 mm)
Quick Specifications
- Product Model
- ESRP-CMS-TPC1751
- Product Type
- Thin Client
- Processor Type
- Atom
- Processor Model
- E3845
- Processor Core
- Quad-core (4 Core)
- Processor Speed
- 1.91 GHz
- Chipset Manufacturer
- Intel
- Standard Memory
- 4 GB
