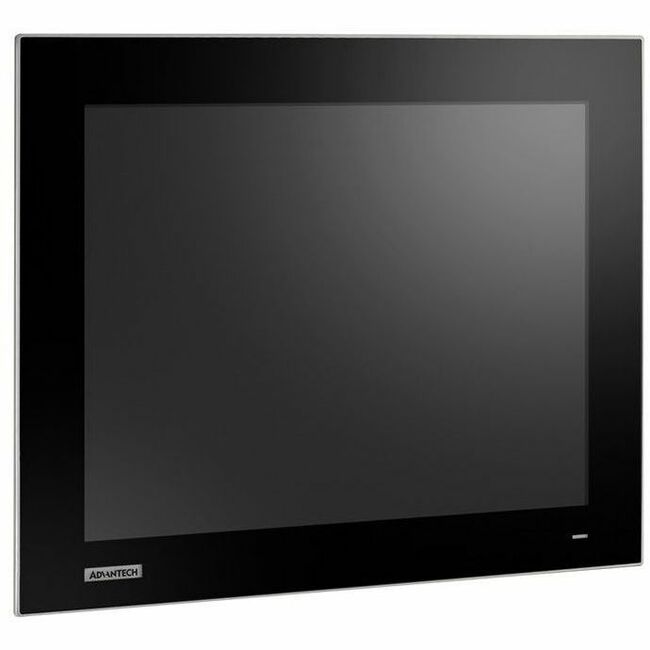

Advantech FPM-717 17" Class LED Touchscreen Monitor
17" Viewable - 5-wire Resistive - 1280 x 1024 - SXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 350 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort
About This Product
Overview
Introduction
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-700 series comprises 15" , 17" and 19" industrial-grade monitors with sleek, simple lines and a true-flat touchscreen. Equipped with durable 5-wire resistive touchscreen and an IP66-rated front bezel, FPM-700 series is specifically designed for industrial applications. Moreover, FPM-700 series support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to make these monitors ideal for factory and machine automation display applications.
- 17" SXGA TFT LED LCD with 50,000 backlight lifetime
- 15" XGA/19" SXGA TFT LED LCD with 70,000 backlight lifetime
- Direct HDMI, DP and VGA input interfaces
- Anti-glare screen with tempered glass
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors ƒ Slim design enables easy installation
- OSD control buttons with 2 user-defined contrast/brightness controls
- Combo RS-232 & USB interface for touchscreen functionality
- Supports various mount options: panel, wall, desktop, rack or VESA arm mounting
Quick Specifications
- Product Series
- FPM-700
- Product Model
- FPM-717
- Product Type
- LED Touchscreen Monitor
- Screen Size Class
- 17"
- Viewable Screen Size
- 17"
- Screen Mode
- SXGA
- Panel Technology
- Thin Film Transistor (TFT)
- Horizontal Viewing Angle
- 170°
