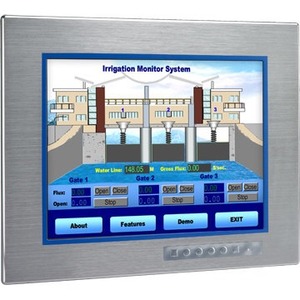

Advantech FPM-8151H 15" Class LCD Touchscreen Monitor - 11 ms
Manufacturer: Advantech Co., Ltd
Mfr. Part: FPM-8151H-R3BE
15" Viewable - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 400 Nit - LED Backlight - DVI - USB - VGA - 24 Month
About This Product
Overview
The FPM-8151H is a rugged and reliable 15" XGA, wide-temperature industrial monitor aimed at diverse applications. With support for a wide operating temperature range (-20 ~ 60°C/-4 ~ 140°F) and UL Class I, Division 2, certification for hazardous environments, FPM-8151H is built to withstand operation in harsh industrial environments. The FPM-8151H monitor also features enhanced 5-wire resistive touch control and system isolation for enhanced reliability.
- 15" XGA TFT LCD with LED backlight.
- Stainless steel 316L front panel.
- IP65 compliant front panel.
- -20 ~ 60°C (-4 ~ 140°F) wide operating temperature range.
- Enhanced 5-wire resistive touch panel.
- Direct VGA & DVI-D video input interface.
- Combo RS-232 & USB interface for touchscreen function.
- Supports 24 VDC input and 100~240 VAC input (optional AC adapter).
- OSD control pad with lockable function on front panel.
- Certified with UL CID2 for hazardous environment.
Quick Specifications
- Product Series
- FPM
- Product Model
- FPM-8151H
- Packaged Quantity
- 1
- Product Type
- LCD Touchscreen Monitor
- Screen Size Class
- 15"
- Viewable Screen Size
- 15"
- Screen Mode
- XGA
- Response Time
- 11 ms
