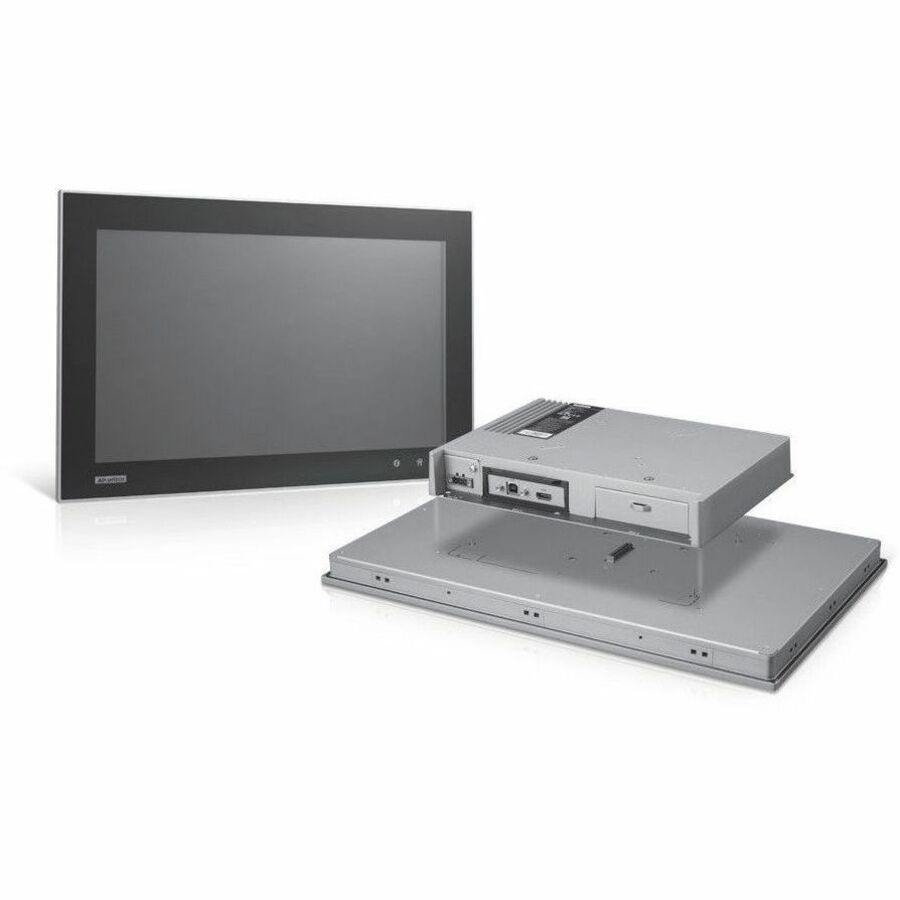

Advantech FPM-D24W-BE 24" Class LED Touchscreen Monitor

Manufacturer: Advantech Co., Ltd
Mfr. Part: FPM-D24W-BE

23.8" Viewable - Projected Capacitive - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 350 Nit - LED Backlight

Advantech FPM-D24W-BE 24" Class LED Touchscreen Monitor

About This Product

Overview

The modular industrial monitors, constructed by the powerful combination of Display Modules, Monitor Boxes and I/O Modules, extend the functionality of classical industrial monitors. The flexible modularized design, equipped with the powerful FPM-M700 I/O modules, allows users to change the video interface according to their usage demands. Additionally, unlike traditional industrial touch monitors that can only support controllers in a one-to-one capacity, the FPM series monitors can support two controllers simultaneously. Moreover, with the inclusion of Picture-in-Picture (PiP) technology, users can easily change the display layout and switch between units that need operating.

The FPM-7002 model also supports Advantech's iLINK technology, a long-distance data transmission solution. This technology is designed to resolve issues of touch signal degradation. The optional Wi-Fi and NFC features also allow users to flexibly configure the monitor systems.

  • Industrial-grade LED LCD with a lifespan of 50,000 hours
  • Modular design enables fliexible configuration of video interfaces (HDMI, DP) and long distance transmission (iLink)
  • Display modules available in various sizes with projected capacitive or 5-wire resistive touch control
  • Front-facing iKey for OSD buttons
  • Capability of controlling 2 modular PCs simultaneously via FPM-M700 I/O modules
  • Supports Picture-in-Picture technology
  • IP66-rated front panel protects against water and dust
  • Supports a signal transmission distance of up to 100 m with iLINK technology

Quick Specifications

Product Series
FPM-7002
Product Model
FPM-D24W-BE
Product Type
LED Touchscreen Monitor
Screen Size Class
24"
Viewable Screen Size
23.8"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)
Horizontal Viewing Angle
178°
