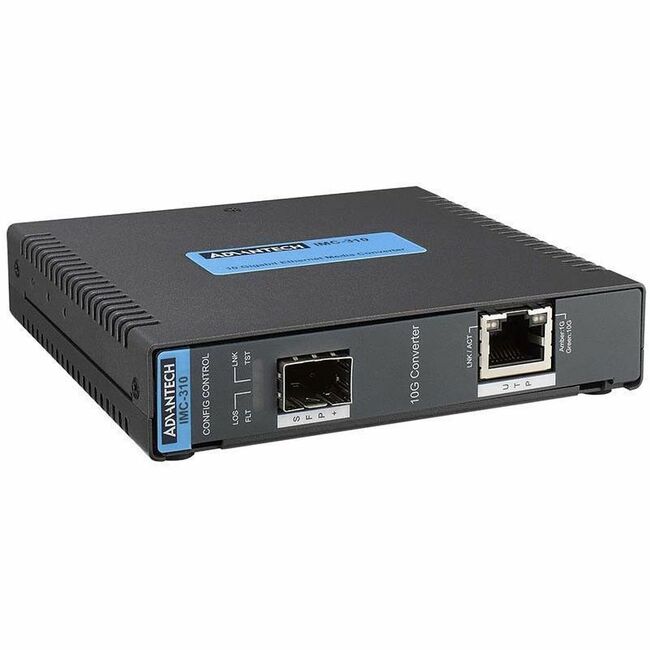

Advantech IMC-310I-SFP Transceiver/Media Converter
1 x Network (RJ-45) - Single-mode, Multi-mode - 10 Gigabit Ethernet - 10GBase-X, 10GBase-T, 10GBase-LR, 100Base-TX, 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-SR, 10GBase-ER, 10GBase-ZR - 80 km - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - AC/DC - DIN Rail Mountable, Panel-mountable, Standalone
About This Product
Overview
IMC-310I-SFP 10G Medial Converter is equipped with one 10G/5G/2.5G/1G/100M BASE-T auto-negotiation port and one 10GBASE-X SFP+ Slot. IMC-310I-SFP supports 10 x Gigabit Ethernet media converter from copper 10GBASE-T to fiber multi-mode or single-mode. It utilizes a 10BASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches, and patch panels. IMC-310I-SFP supports transmission distance from 400m up to 80km to facilitate 10G equipment and device deployment.
- Provides 1xRJ45 to 1xSFP/SFP+ fiber port
- Copper port interface supports 10G/5G/2.5G/1G/100M BASE-T
- Copper port provide full/half duplex flow control
- Supports store and forward transmission
- Supports MDI/MDI-X, auto-negotiation
- Supports AC/DC power input dual mode power input
- Provides flexible mounting: DIN-Rail and panel mount
- Link Fault Pass-Through (LFPT) for troubling shooting
- Fiber port distance from 400m up to 80km
Quick Specifications
- Product Model
- IMC-310I-SFP
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Fiber Mode Supported
- Single-mode Multi-mode
- Maximum Distance Supported
- 80 km
