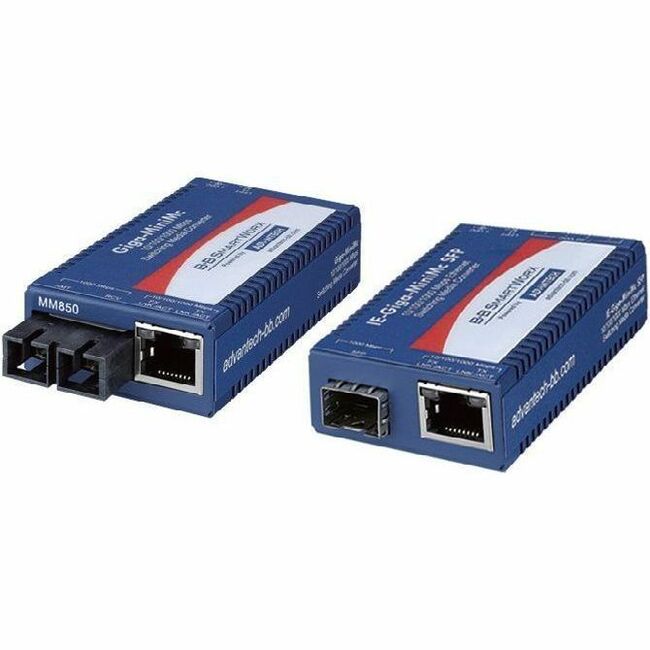

Advantech 10/100/1000Mbps Miniature Media Converter with LFPT
1 x Network (RJ-45) - 1 x SC Ports - SimplexSC Port - 1310 nm, 1550 nm Fiber - Gigabit Ethernet - 1000 Mbit/s - 15 km - Power Adapter - Wall Mountable, Compact, DIN Rail Mountable
About This Product
Overview
The IMC-370 series offers the most compact media converters. They can extend the 10/100/1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000 auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370I series serves as a media and data rate converter that has NEMA TS2 rating, making it ideal for use in traffic applications.
The IMC-370 series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.
The IMC-370 supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in the centrally powered media converter chassis.
- Metal enclosure with compact size
- Industrial grade design that supports an extended operating temperature range
- Provides status LED
- NEMA TS2 for traffic control
- Supports multiple power options: AC or DC adapter and dual USB cable
- Supports Link Fault Pass Through (LFPT)
- Support centralized powered IMC-318I Chassis
Quick Specifications
- Product Line
- Giga-MiniMc
- Product Series
- IMC-370
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- SC Port Type
- Simplex
