Advantech 10G Stand Alone Hardened Ethernet Media Converter
Manufacturer: Advantech Co., Ltd
Mfr. Part: IMC-610-A
1 x Network (RJ-45) - Single-mode, Multi-mode - 10 Gigabit Ethernet - 10GBase-X, 10GBase-SR, 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-T - 80 km - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - AC/DC - DIN Rail Mountable, Panel-mountable, Standalone
About This Product
Overview

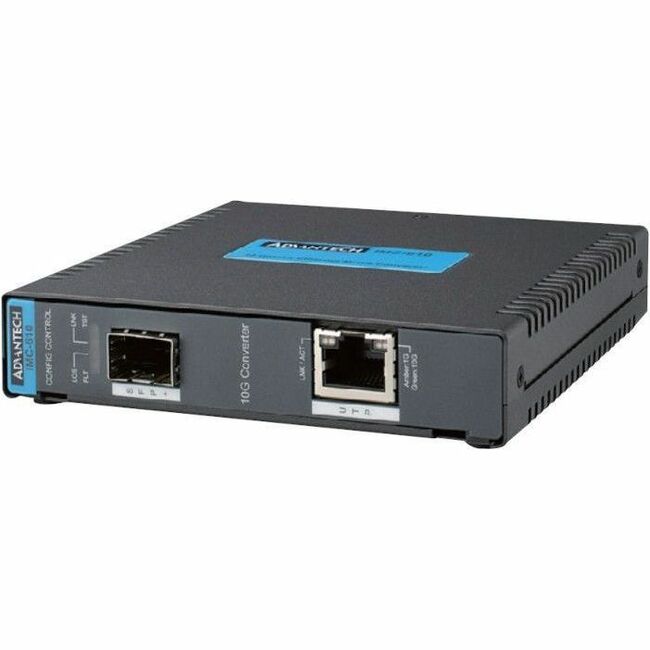

IMC-610 SFP+ 10G Medial Converter is equipped with one 10G/5G/2.5G/1G/100M BASE-T auto-negotiation port and one 10GBASE-X SFP+ Slot. It supports 10Gigabit Ethernet media converter from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10BASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels, which supports the transmission distance from 400m up to 80km to facilitate 10G equipment and devices deployment.
- Provide 1xRJ45 to 1xSFP/SFP+ fiber port
- Copper port interface support 10G/5G/2.5G/1G/100M BASE-T
- Copper port provide full/half duplex flow control
- Support store and forward transmission
- Support MDI/MDI-X, auto-negotiation
- Support AC/DC power input dual mode power input
- Provide flexible mounting: DIN-Rail and panel mount
- Link Fault Pass-Through (LFPT) for troubling shooting
- Fiber port distance from 400m up to 80km
Quick Specifications
- Product Series
- IMC-610
- Product Model
- IMC-610-A
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Fiber Mode Supported
- Single-mode Multi-mode
