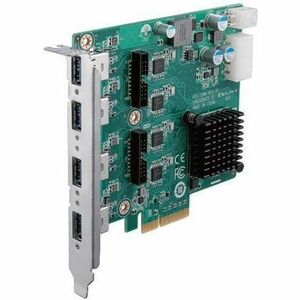

Advantech PCIe x4, 4-port USB 3.0 Expansion Card
PCI Express x4 - 640 MB/s, 60 MB/s, 1.50 MB/s, 192 kB/s - 4 USB Port(s) - 4 USB 3.0 Port(s) - PC
About This Product
Overview
PCE-USB4 is a 4-port PCIe x4 expansion card aimed at industrial imaging applications. Featuring four independent Renesas µPD720202 USB 3.0 host controllers, a Gen 2 PCI Express® x4 interface, and a per-port bandwidth of 5 Gbps when operating four ports simultaneously, PCE-USB4 delivers maximal per-port performance. PCE-USB4 features four USB 3.0 ports (for expansion, PCE-USB8 features eight USB 3.0 ports) with 1500 mA current to ensure stable power for external USB devices. PCE-USB4 is a high-bandwidth industrial-power expansion card designed for machine vision, factory automation, and medical applications, as well as any other applications that require high data transfer speeds.
- Four USB 3.0 host controllers
- Supports 1500mA Max. current per port
- Supports four or eight USB 3.0 ports
- Compliant with USB 3.0 specification and Intel® xHCI specification, revision 1.0
- PCI Express x4 interface
- Supports Microsoft Windows 7/8.1/10 and Linux operating systems
Quick Specifications
- Product Model
- PCE-USB4
- Product Type
- USB Adapter
- Host Interface
- PCI Express x4
- Data Transfer Rate
- 640 MB/s 60 MB/s 1.50 MB/s 192 kB/s
- Total Number of USB Ports
- 4
- Number of USB 3.0 Ports
- 4
- USB Version
- 3.0
- USB Connector Type
- Type-A
