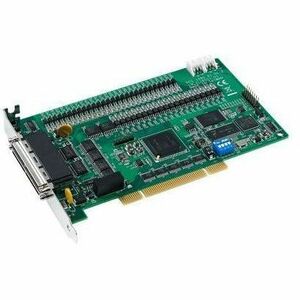

Advantech 8-axis Stepping/Servo Control Universal PCI Card
x 3.9" Height x 6.9" Length
About This Product
Overview
PCI-1285 is a 8-axis universal PCI (supporting both 3.3 V and 5 V signal slot) stepping/pulse-type servo motor control card designed for applications which need to control interpolation, synchronization among multiple axes, continuous contouring, and high speed triggering. PCI-1285 utilizes high-performance DSP and FPGA to calculate motion trajectories, synchronization timing control for multiple axes, and input/output handling to offer functionality, such as up to 4/6 -axis linear interpolation, 2- axis circular interpolation, helical interpolation, T/S-curve acceleration/deceleration rates and so on. In addition, Advantech supplies a Common Motion API library, graphical utility, and user-friendly examples to help decrease programming workloads.
- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- Pulse output up to 5 Mpps
- Memory buffer (up to 10K points) for trajectory planning which is designed in DSP
- Supports E-Gear, and helical interpolation
- Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
- Hardware emergency input
- Watchdog timer
- Position latch
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
- Programmable interrupt
- Supports gantry mode by semi-closed loop pulse train control
- RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
Quick Specifications
- Product Model
- PCI-1285
- Product Type
- Stepping/Servo Control Universal PCI Card
- Connector Type
- 100-pin mini-SCSI Female
- Height
- 3.9"
- Length
- 6.9"
- Application/Usage
- Motor
- Compatibility
- Advantech: Servo Motor Stepper Motor
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
