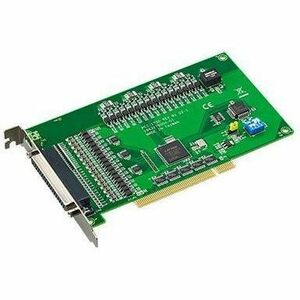

B+B SmartWorx 32-ch Isolated Digital I/O (NPN DO) and Counter PCI Card
Manufacturer: Advantech Co., Ltd
Mfr. Part: PCI-1750-BE
x 3.9" Height x 6.9" Length
About This Product
Overview
PCI-1750/1750SO offers 16 isolated digital input channels, 16 isolated digital output channels, and one isolated counter/timer for the PCI bus. With isolation protection of 2,500 VDC, and dry contact support, PCI-1750/1750SO is ideal for industrial applications where high-voltage protection is required. Each I/O channel of the PCI-1750/1750SO corresponds to a bit in a PC I/O port. This makes PCI-1750/1750SO very easy to program. This card also offers a counter or timer interrupt and two digital input interrupt lines to a PC, so you can then easily configure the card with software.
- 16 isolated DI and 16 isolated DO channels
- High voltage isolation on all isolated channels (2,500 VDC)
- High source current on isolated output channels (200 mA/channel)
- Supports dry contact or 5 ~ 50 VDC isolated inputs
- Interrupt handling capability
- Timer/counter interrupt capability
Quick Specifications
- Product Model
- PCI-1750
- Product Type
- I/O Module
- Connector Type
- DB-37 - Female
- Height
- 3.9"
- Length
- 6.9"
- Application/Usage
- Industrial
- Country of Origin
- Taiwan
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
