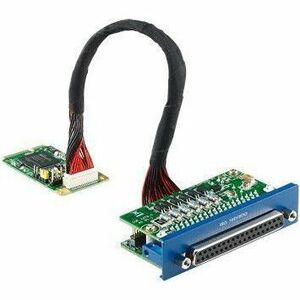

Advantech Isolated Digital Input Module
Manufacturer: Advantech Co., Ltd
Mfr. Part: PCM-27D24DI-AE
About This Product
Overview
The PCM-27 series are digital input/output modules from Advantech iDoor Technology. They are all compatible with the PCI Express® Mini Card Specification Revision 1.2, including isolated / non-isolated RS-232/422/485 communication cards for automation control, Wi-Fi/3G/GPS/GSM/LTE wireless communication models for data exchange for management and machine level automation applications; the ZigBee module serves as an IoT terminal or controller, and PoE function for smart cameras in detection-inspection-production applications. This is a flexible design that enables customers to customize their features with iDoor Technology.
- Meets Advantech Standard iDoor Technology
- PCI Express® Mini Card Specification Revision 1.2 compliant
- Supports wide-input/output voltage (10-30 VDC/5-30 VDC)
- High over-voltage-protection (70 VDC) and voltage isolation (2,500 VDC)
- Easy configuration & efficient programming by Advantech DAQNavi
- I/O address automatically assigned by PCIe plug & play
- Keeps the output settings and values after system hot reset
- Supports Embedded Automation PC UNO-2200/2300/2400 series
- Supports Control DIN-Rail PC UNO-1300/1400 series
- Supports Control Cabinet PC UNO-3200/3300/3400 series
- Supports Control Panel Computers TPC-xx81/xx82 series
- Supports Thin Client Panel Computers TPC-xx51 series
Quick Specifications
- Product Model
- PCM-27D24DI-AE
- Product Type
- Isolated Digital Input Module
- Connector Type
- Female
- Indoor/Outdoor
- Indoor
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
